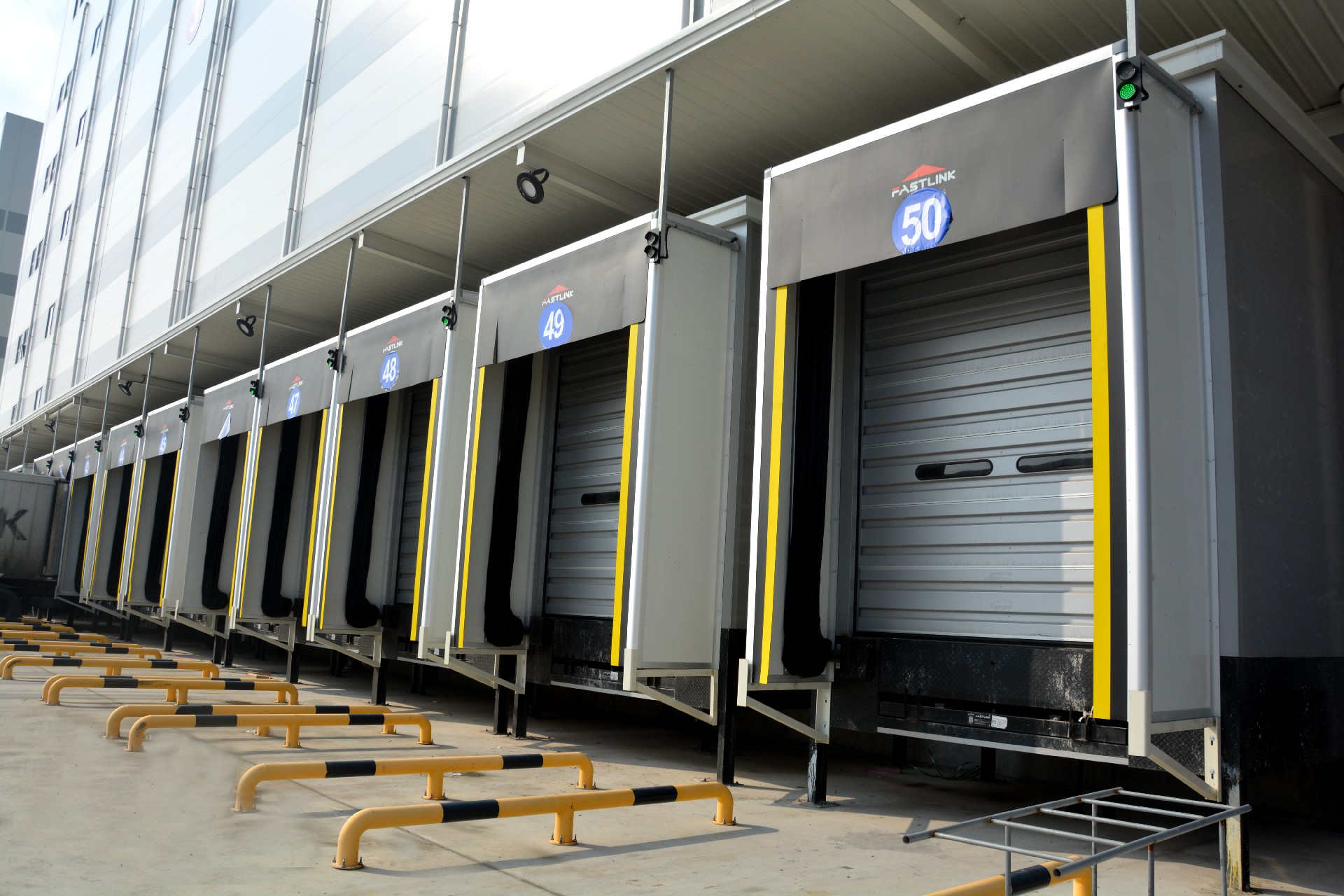

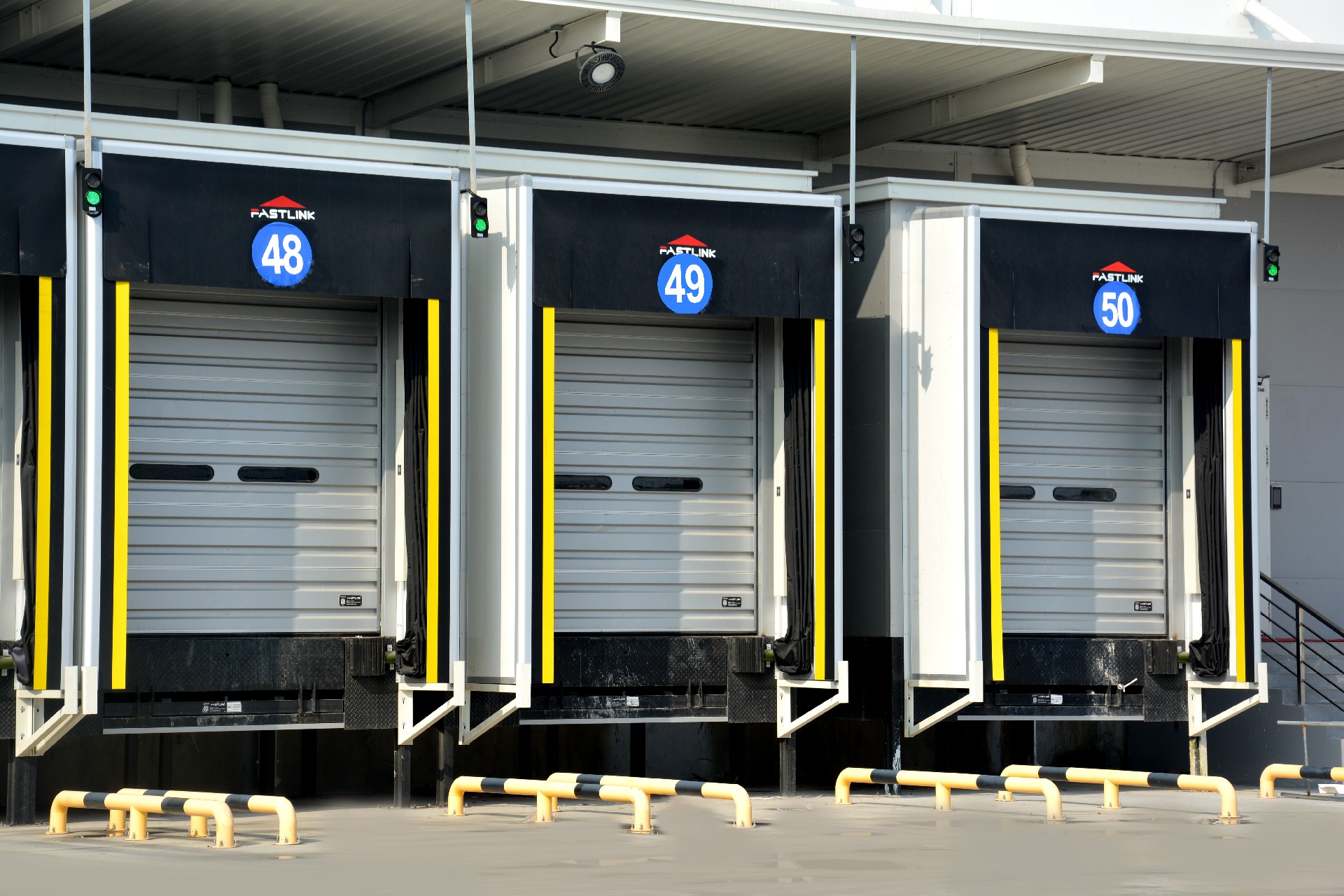

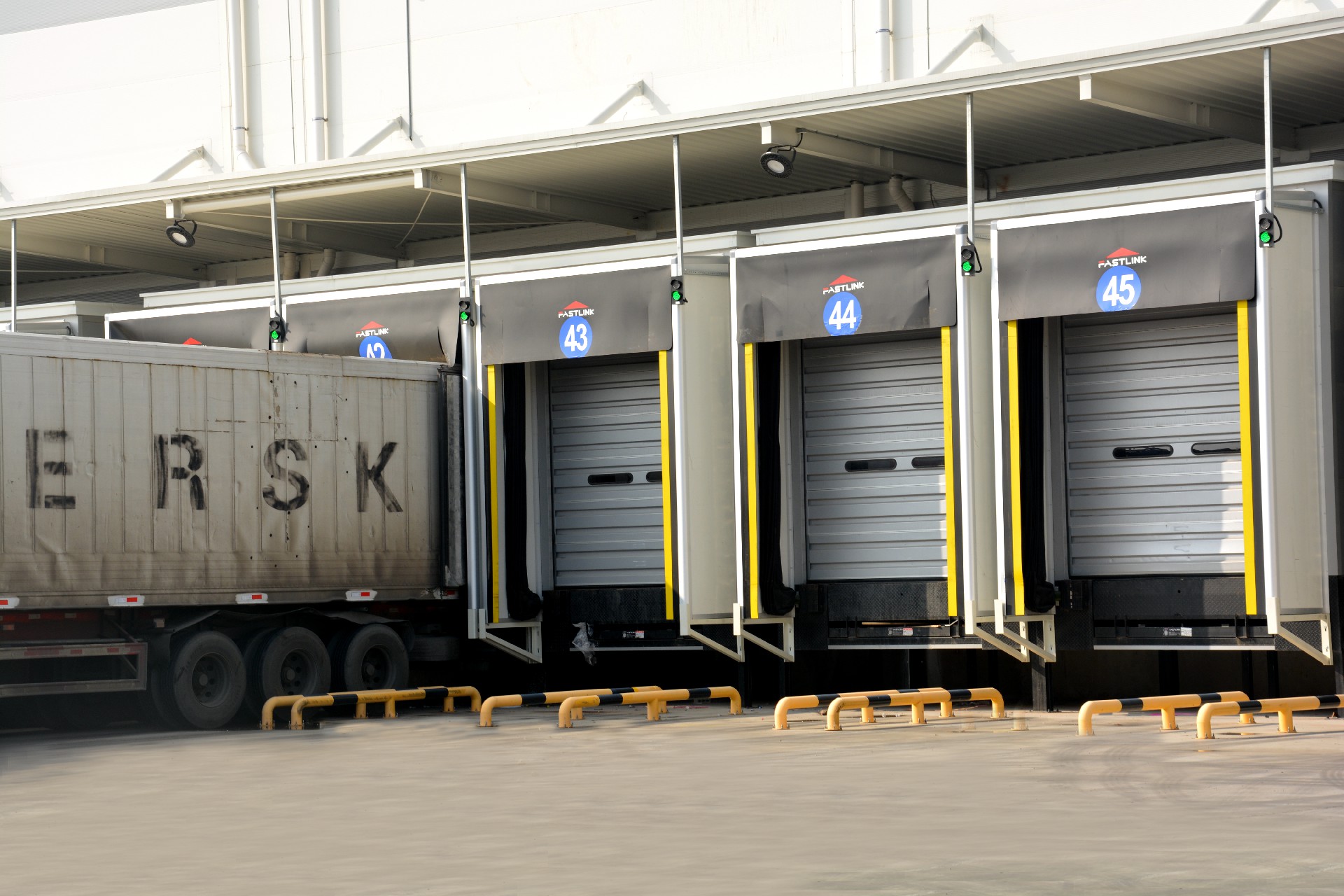

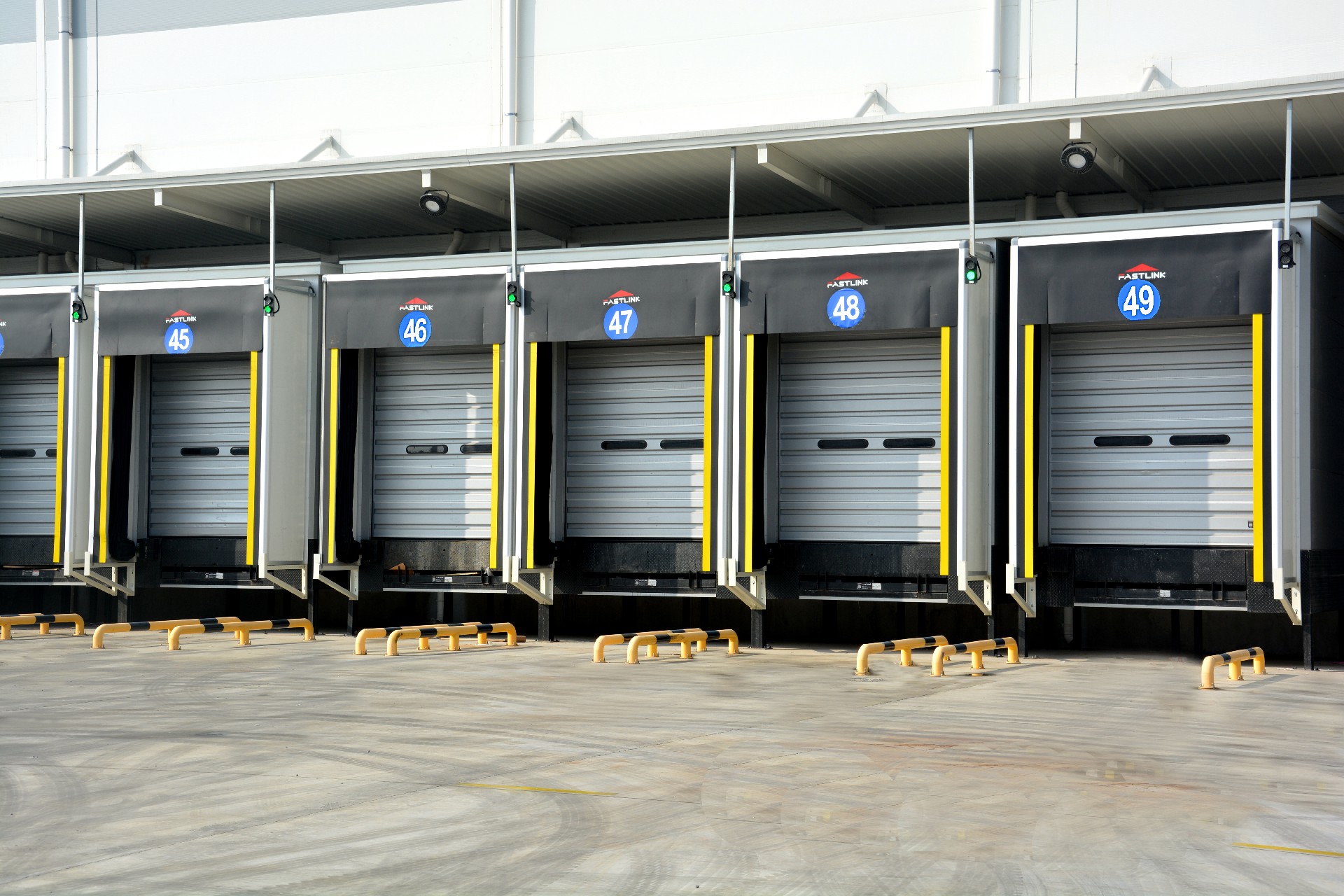

DH-ISR Dock House

The loadhouse is the optimal scheme for the reconstruction of the factory building and the loading of the unloading platform.

Technical description:

Product features:

For the spacious area of the outdoor parking space, the loadhouse is also an option for the cold-break design.

The loadhouse is installed on the outside of the thermal insulation sliding door of the cold storage (without occupying the building area), which can save the valuable space inside the cold storage and increase the working space. It includes loading and unloading bay, loading and unloading platform, door sealing series and so on. Thoroughly differentiate indoor and outdoor temperatures to achieve lower energy costs. After the sliding door is closed, the convection of indoor and outdoor air can be cut off to achieve a better sealing of the entrance.

The size of the loadhouse shall be designed according to the size of the door and the unloading platform. The strength shall be calculated by static load. Generally, the modular structure that is easy to assemble and transport shall be adopted for site installation.

The loadhouse generally adopts polyurethane board with thickness of 42mm, 50mm and 75mm, and the bottom frame of the loadhouse can also be insulated according to customer's requirements.
