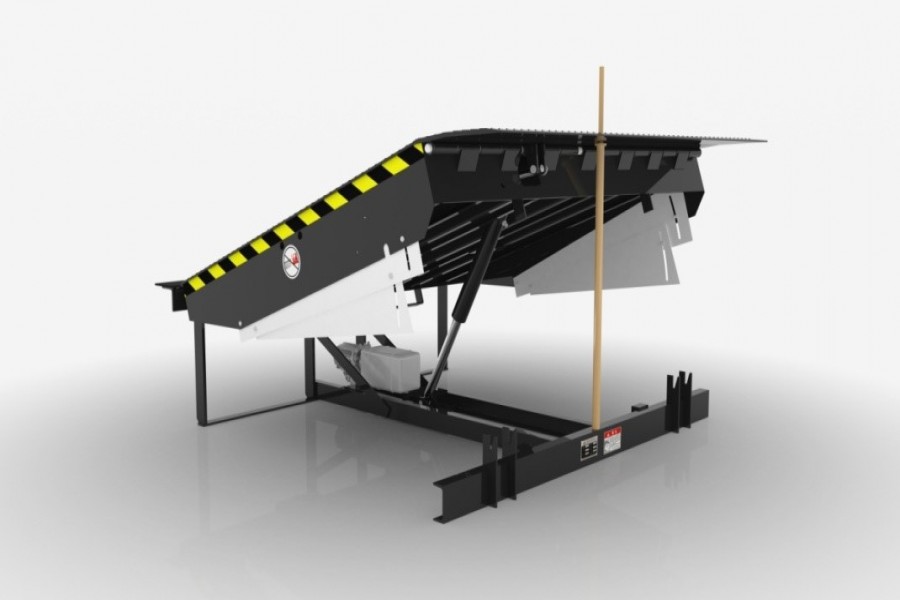

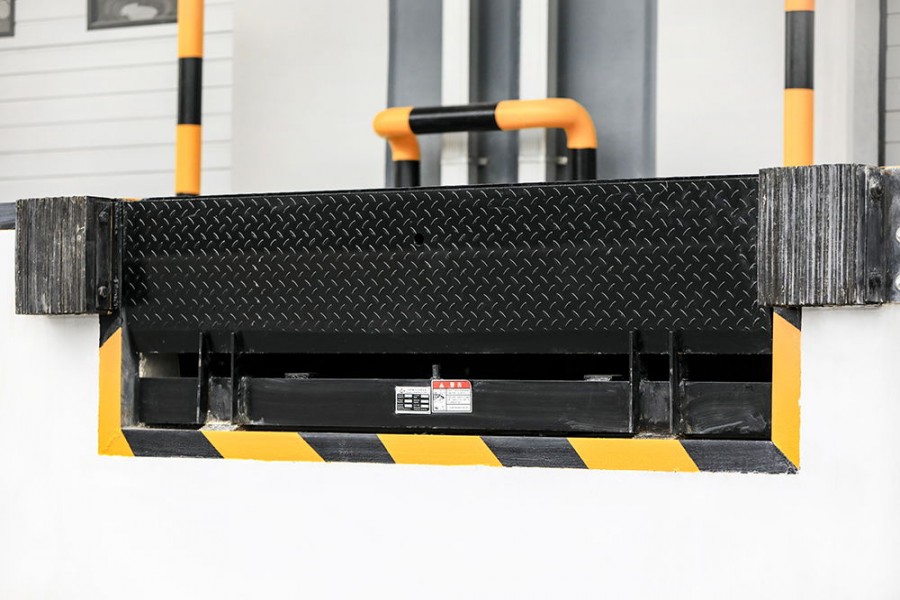

DLS-SHK Dock Leveler with Swing Lip
Realize horizontal loading and unloading and improve loading and unloading efficiency; Widely used in modern logistics loading and unloading platform
Technical description:
●Dynamic Load:
6-20 tons
●Material：
Platform plate: high-strength steel plates with anti-slip patterns at a thickness of 6/8mm Clapper: high-strength steel plate with anti-slip patterns at a thickness of 14/15 mm and a standard length of 400mm

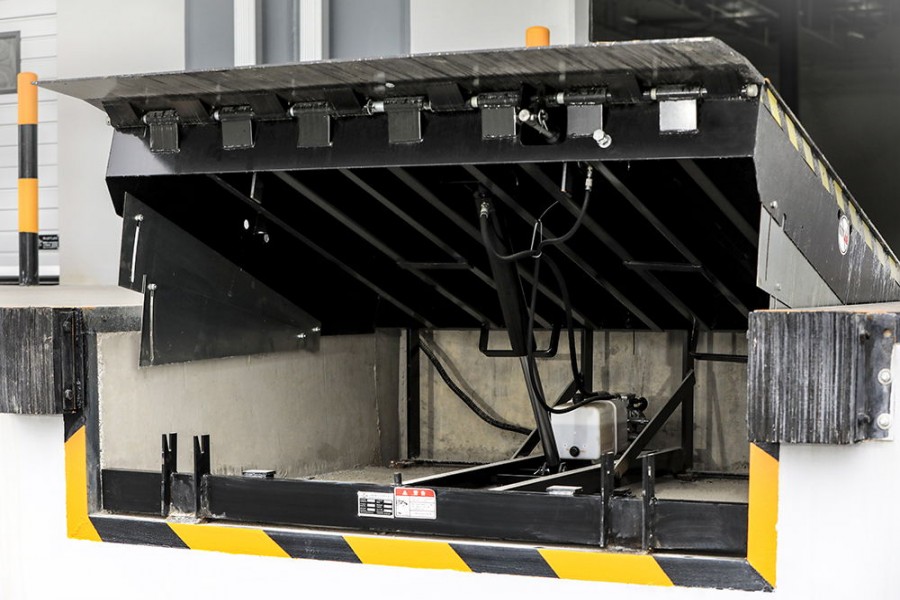

●Structure of Platform
Reinforced section steels of different structures with spacing no more than 200mm are adopted, suitable for various handling equipment and different load requirements
●Hydraulic Power Unit：
The operation of imported hydraulic power unit, including clapper, is controlled by the hydraulic system, which ensures the reliability and low maintenance rate of the whole equip-ment
●Surface：
The coating done by electrostatic powder spraying and high temperature baking is strong in adhesion and wear resistance
●Color：
RAL9011 black and RAL7016 gray are standard colors, and other colors can be customized according to customer requirements
Product features:
Reliable Hydraulic System with a Robust Reasonable Structure
Fastlink is committed to creating a safer hydraulic dock leveler with a full range of safety configuration, including UMBRELLA protective umbrella maintenance support rods, safety hydraulic locking valves and interlocking controls.
Fastlink offers a wide range of optional configurations, including a full series of metric and British dimensions, as well as a variety of paint colors and surface treatments such as electroplating.
The Fastlink dock leveler is equipped with smoother transition devices, including an arch bridge design at the rear end and a double 5-degree clapper design at the front end.
The Fastlink dock leveler adopts the user-friendly smooth transition design in many places, which greatly reduces the incidence of occupational diseases of forklift drivers and the damage rate of goods in the handling process.
Control System
With the standard 380V three-phase AC power supply, platform lifting and descending and be achieved through single-button operation, which is simple and safe.
According to customer require-ments, it can achieve a coordi-nated control with sectional door and inflatable door seals.
Operating Instructions
When the truck is parked in place, press the control button continuously, and the clapper will open automatically when the platform rises to the highest point. Loosen the control button, and the platform will automatically descend until the clapper is attached to the bottom plate of the transport vehicle, after which the handling operation can be started. After handling, press the control button continuously and the platform will be reset.
