HSV-HAS Hard High Speed Door
Higher Speed & Frequent Opening
Technical description:

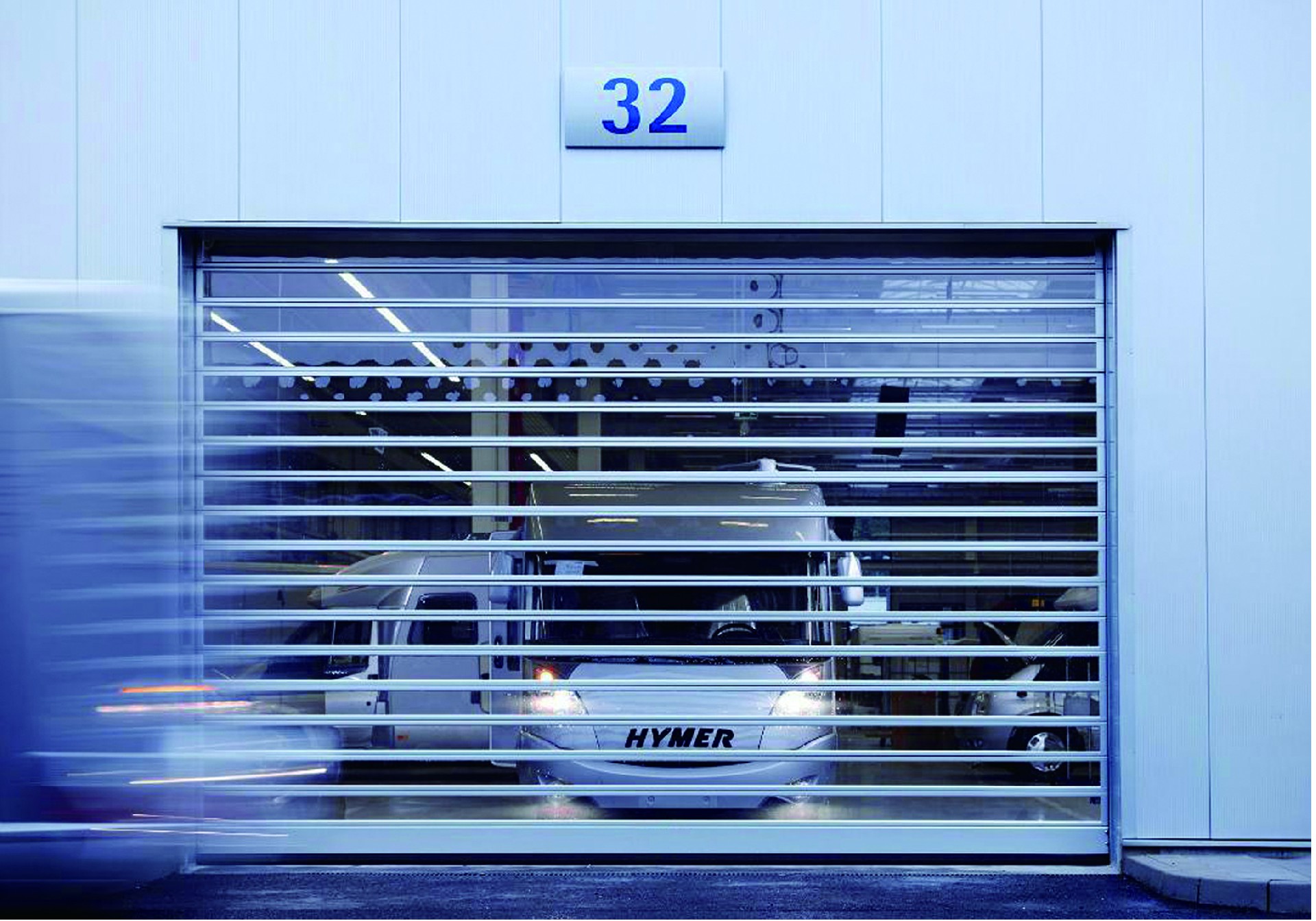

●TRANSPARENT HARD HIGH SPEED DOOR
●Optional Requirements:
Specifications
●Door Size:
Minimum dimension W1250/H2000
Maximum dimension W6000/H6000
●Door opening/closing speed:
Minimum closing speed 0.6m/s, Maximum opening speed 1.5m/s
●Door panel material:
Perspective door panel, with each piece 200mm high, the whole panel 40mm thick with an aluminum alloy frame, and two layers of polycarbonate boards at the middle
●Power supply voltage
Single phase 220V, 50/60HZ
●Color of 200mm door panel, upright post and machine head:
Space Grey (KL001) / Red (KL002) Champagne (KL003) / Sapphire (KL004) Pearl White (KL005)
●Track seal:
Brush bar
●Wind resistant column:
Aluminum alloy profiles
●Motor cover:
Optional
●Scroll cover:
Optional
●Installation position:
External door, internal door
●Open configuration(optional):
Remote control/3-key button/geomag-netic/radar/pull-cord switch
●Service life:
More than 1.5 million times
●Operating ambient temperature:
-10℃ ~ +40℃

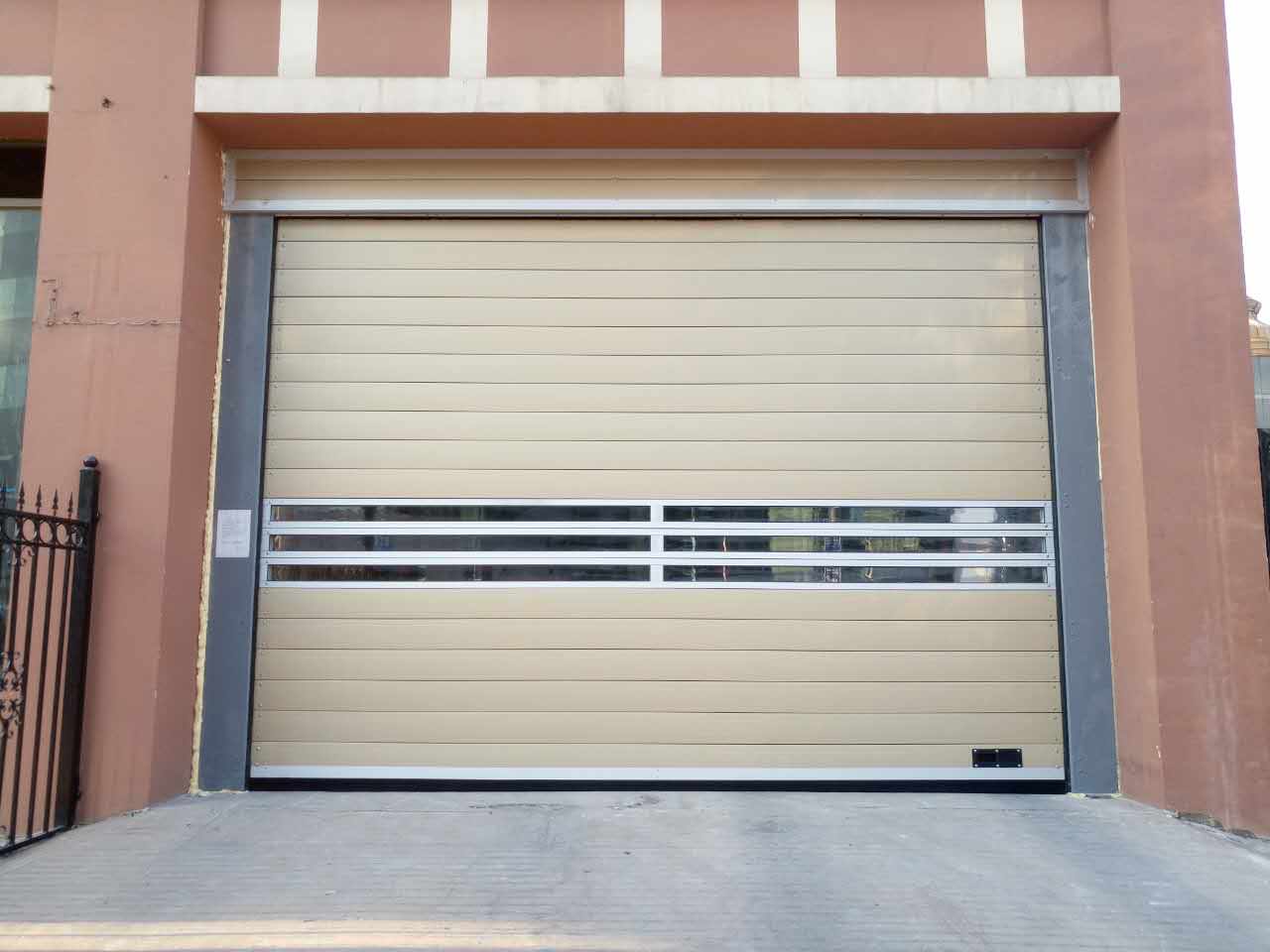

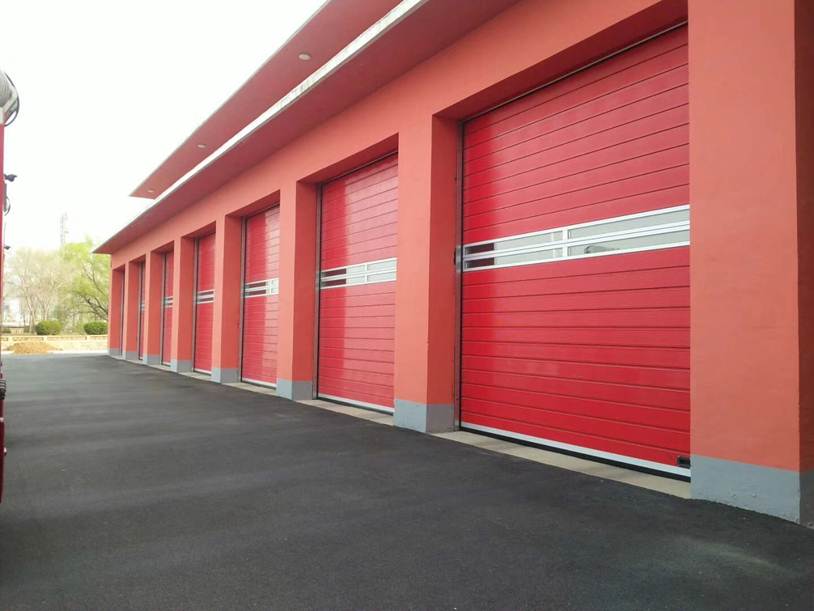

●TRANSLUCENT HARD HIGH SPEED DOOR
●Optional Requirements:
Specifications
●Door Size:
Minimum dimension W1250/H2000
Maximum dimension W6000/H6000
●Door opening/closing speed:
Minimum closing speed 0.5m/s, Maximum opening speed 1.5m/s
●Door panel material:
Aluminum alloy door panel,with each piece 185mm high, and the whole panel 40 mm thick.
●Power supply voltage
Single phase 220V, 50/60HZ
●Door curtain window:
Observation window (optional), up to 4
●Color of 200mm door panel, upright post and machine head:
Space Grey (KL001) / Red (KL002) Champagne (KL003) / Sapphire (KL004) Pearl White (KL005)
●Track seal:
Brush bar
●Wind resistant column:
Aluminum alloy profiles
●Motor cover:
Optional
●Scroll cover:
Optional
●Installation position:
External door, internal door
●Open configuration(optional):
Remote control/3-key button/geomag-netic/radar/pull-cord switch
●Service life:
More than 1.5 million times
●Operating ambient temperature:
-10℃ ~ +40℃
Product features:
The newly developed hard high speed door can realize real high-speed start, and no matter how frequently it is opened, the time of indoor and outdoor air convection can be minimized.
Its innovative reeling technology reduces the friction between curtain sheets. While reducing noise, it also reduces the loss between curtain sheets and realizes lower maintenance cost.
It can be used as either an external or internal door, for applications that require frequent and fast opening and clean environment.
Typical application industries: automobile manufacturing, food production & packaging and pharmaceutical production.
