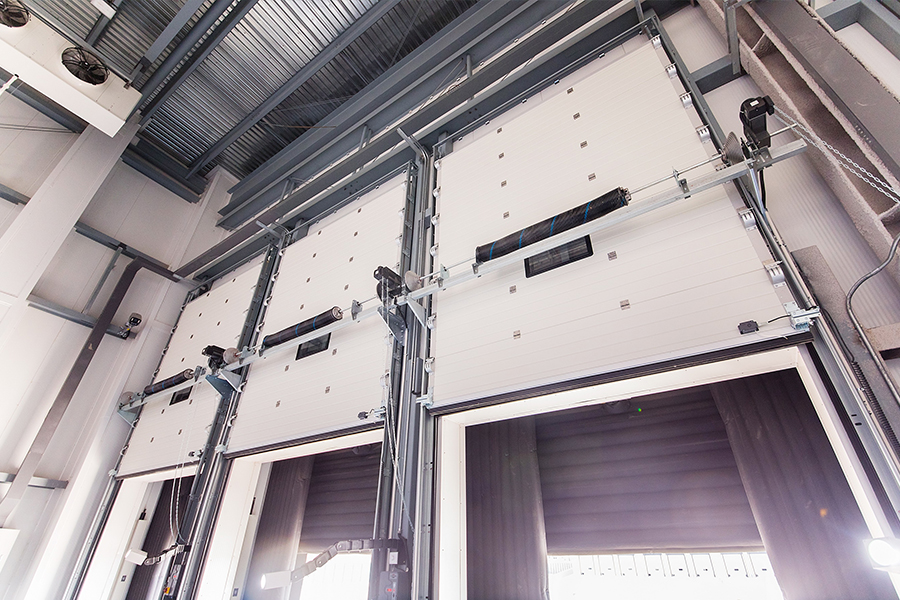

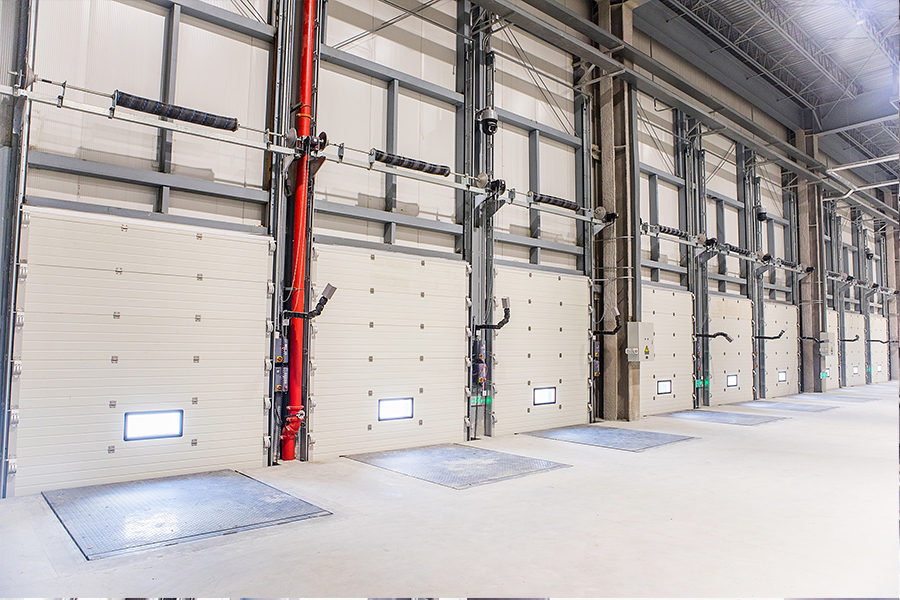

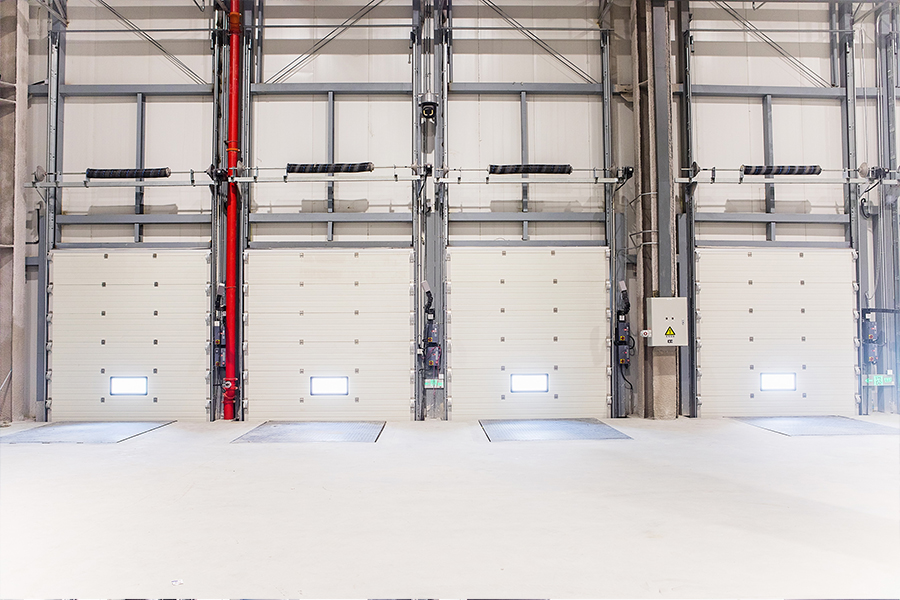

SSD-CAS Insulation Sectional Door for Cold Storage
The installation method of the cold bridge and the window with heating are specially designed for the cold storage, which can perfectly solve the problem of sealing and heat preservation of the cold storage.
Technical description:
●Door size:
Minimum size W1500/H2000/
Maximum size W5000/H6000
●Door opening/closing speed:
0.25 m/s
●Door panel material:
Polyurethane foaming/Ash, silver ash, window ash (optional)
●Installation position:
Interior
●Door frame combination:
optional
●Open configuration (optional) :
Remote control/3-key button/ geomagnetic/radar/pull-cord switch
●Service life:
More than 1 million times
●Operating ambient temperature:
0 ℃ ~ 25 ℃
Product features:
The insulation sectional door of the cold-storage is generally used in the low temperature hall area of 0-10℃, which is different from the normal temperature environment. It needs to ensure that during the use, there is no condensation on the door panel surface, no water on the ground and no rusty components.
The door panel is made of aluminum-magnesium alloy, the pulley seat is made of aluminum alloy, and the torsional spring has an electrophoretic coating on the surface, which is not easy to rust, and is very suitable for humid and low-temperature environment.
Aiming at the fogging and blurring problem of ordinary windows in cold-storage, the special electric heating glass window design can keep the windows clean and transparent all the time.
During the installation of products, the thermal baffle can effectively improve the condensation and water accumulation on the floor after the cold bridge is generated when the track is directly fixed with the cold-storage board.
