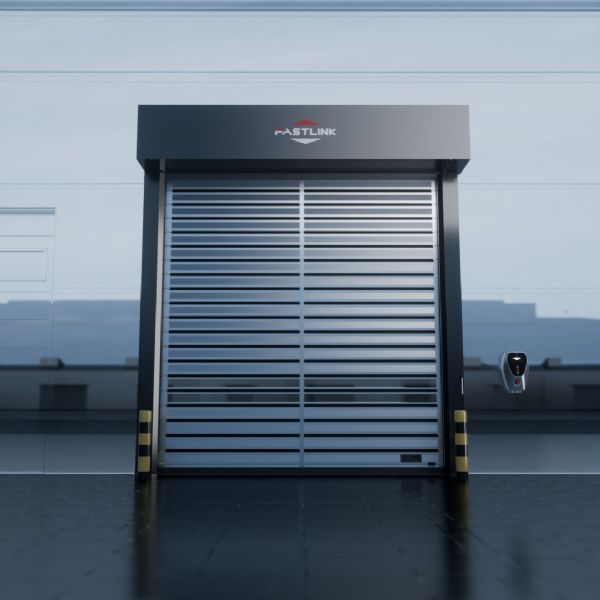

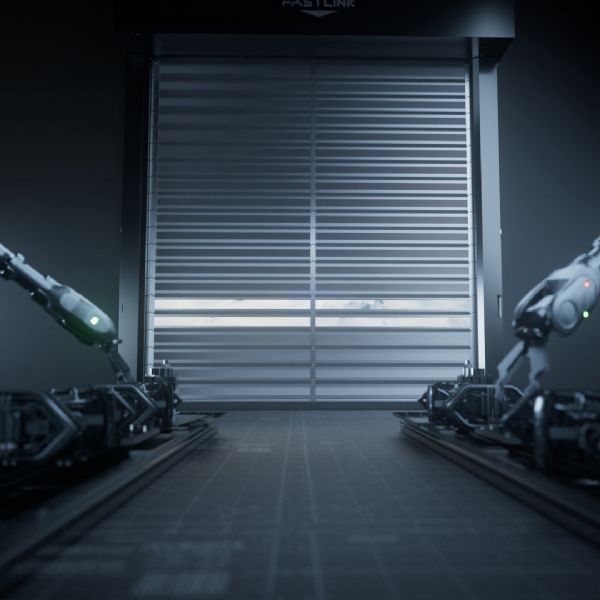

The newly developed Spiral high-speed door achieves true rapid opening/closing, minimizing the time spent in convection between indoor and outdoor air, even if it is opened more frequently. Innovative spiral technology reduces friction between the curtains. The door is designed to reduce noise while minimizing wear and tear between the panels, resulting in lower maintenance costs. It can be used for exterior or interior doors that need to open frequently and quickly, where insulation is required, and where clean environments need to be ensured. Typical applications: automotive, food, and pharmaceutical manufacturing.
Door panels are produced through a continuous automatic production line imported from Bayer Hennecke in Germany, with excellent thermal insulation performance. Thermal Break design.
Cooling and energy saving
Wind pressure resistance 1500Pa~3000Pa. Thermal insulation, cooling, and energy saving, and with a unique thermal break, suitable for -35 ℃ to 60 ℃ (Cannot be applied in cold storage)
High-speed opening

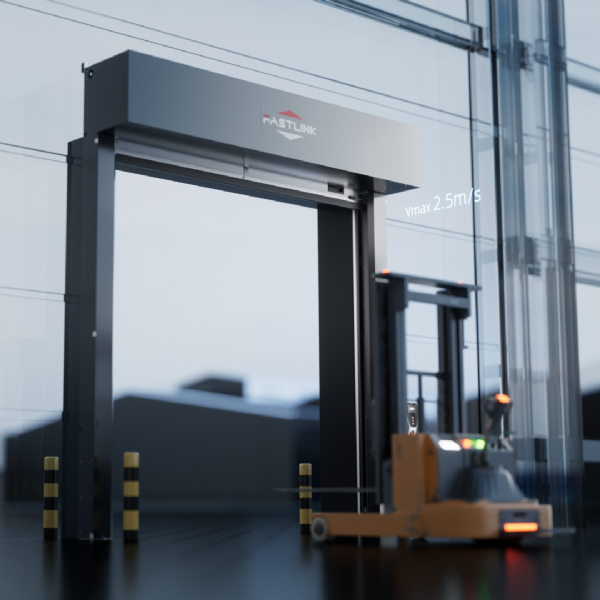

High-speed opening; maximum opening speed of 2.5m/s.
Lowest cost for the product's life cycle
Balancing system lower maintenance; Counterweight Modular balancing system; Lowest cost for the product's life cycle.
Perspective safety protection

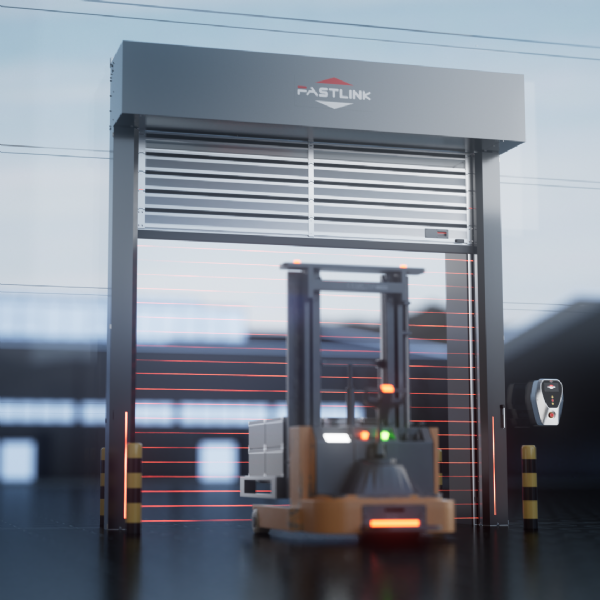

Safety Infrared sensor; Safety Door bottom sensor protection. Emergency manual opening device. Light curtain safety protection. Door opening and closing warning light. UPS power supply emergency opening.
Multiple opening methods
Multiple opening methods: push button, remote control, radar, loop detector; AGV identification; Access control system; Car number plate recognition; Cell phone Bluetooth.
Self-developed “Technology Eye” control system IP65 protection rating Integrated wiring harness design Abundant interfaces
03
High-strength tension straps, 10 times the safety level
04
TPU roller is injection molding, a life expectancy of more than 1,000,000 times. Super wear-resistant PEEK hinge bushings, wear-resistant and silent.
05
Fasteners are treated with Dacromet plating technology. The door panel is more secure, reduces corrosion, and is more durable. High-quality aluminum alloy hinge more stronger, and corrosion-resistant.
Lifting Methods
Diversified lifting methods to meet installation needs in different spaces
Spiral lifting
Oval lifting
90 degrees angle lifting
Process Highlights
Spline shaft drive with good alignment, Smooth operation with low failure rate.
Scrolls are designed with Archimedes curves for low drag and high speeds. Non-contact track design for more smoothness
Separate opening rails for easy maintenance. More flexible maintenance. Components can be disassembled and replaced independently.
Removable door panel design: It is easy to replace the door panel by opening the hinge
Weatherproof sealing between the door panels, tight fit, and durable. The built-in mute sealing strip on the rail has low noise under high-speed operation.
The spiral high-speed door has a unique door panel structure and hinge design so that the overall stability of the door is remarkable; a frontal pressure of 700Pa will not have any impact on the door.
Sprial high-speed doors are widely used in civil/commercial garages. They can be controlled remotely by remote control/mobile phone APP, which is very convenient; at the same time, it can provide all-around security protection for your car with sealing, anti-theft and wind resistance.
The Sprial high-speed door is designed with modular integrated circuits and the control box with on/off/stop push button switches is very simple to recognize and manipulate. The product will come with recommended operating instructions guide and daily problem troubleshooting, in addition, Cryolink provides remote guidance service 24 hours a day.
Spiral high-speed doors use a counterweight balancing system and do not require maintenance for 1 million uses; daily use is recommended to do a maintenance check once a year/ 200,000 times to keep them at their optimal performance.
