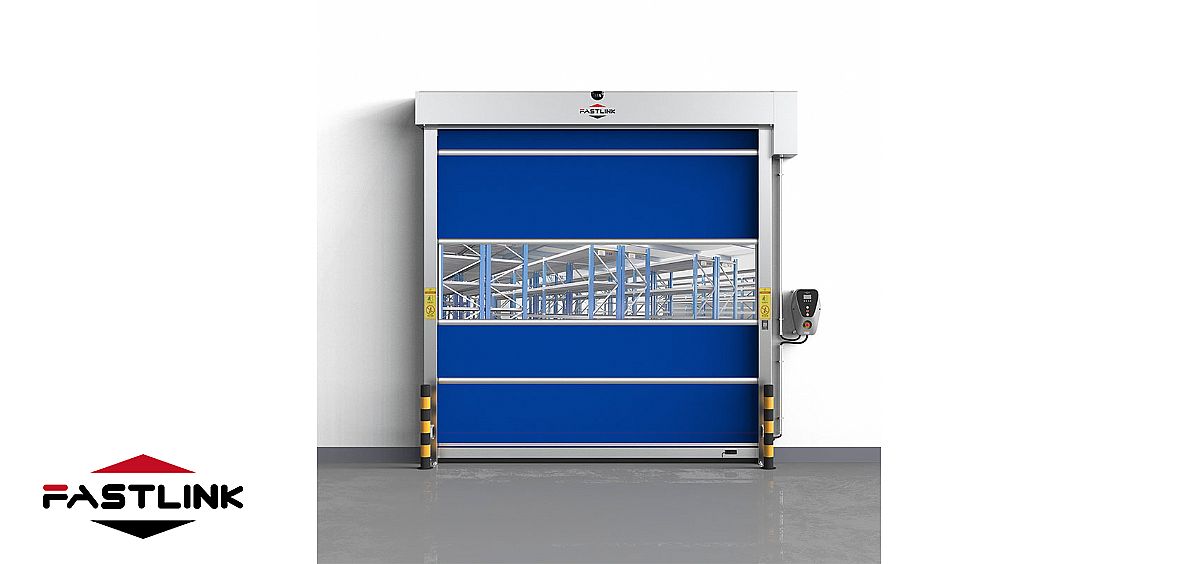

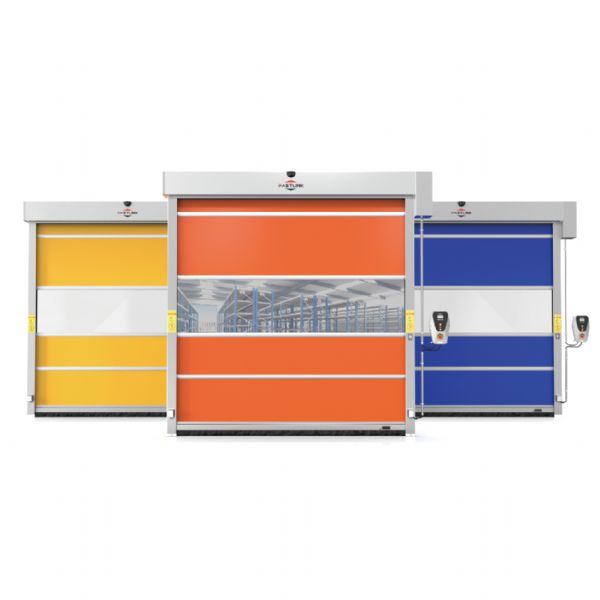

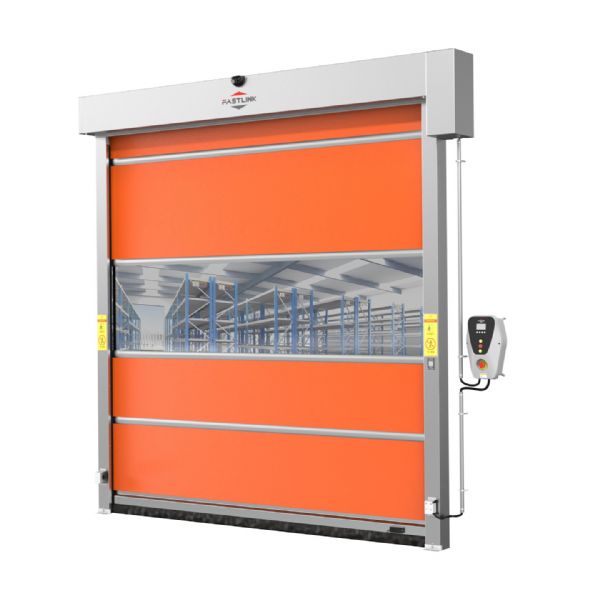

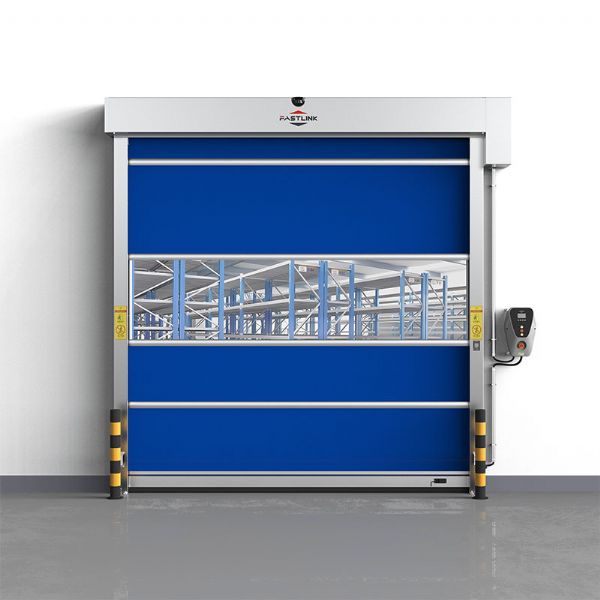

The Interior High Speed Door has the functions of quick opening and closing, sealing, dust prevention, mosquito and insect prevention, safety, intelligent control, etc., and has been widely used by users at logistics entrances. Using fully automated production lines to produce door curtains; Sheet metal bending+built-in sealing brush track technology brings high-speed and quiet operation effect; Multiple security measures have been used for many years without any safety concerns; The flexible opening method allows users to choose from various usage environments. Intelligent control systems such as access control and remote control on mobile devices provide you with a convenient, reassuring, and reassuring control experience.
Smooth operation, precise positioning; Signal feedback: The operation limit will provide a feedback confirmation signal, which links with the equipment; Multi-scenario installation: It can also be used in scenarios with small motor volume and space. Variable frequency control: slow start and slow stop, smooth operation, low noise.
Derailment reset function
The bottom of the door curtain is designed with a soft bottom edge, which has a derailment reset function to prevent the bottom door curtain from being damaged or torn by forklifts during maintenance.
Multiple aluminum alloy reinforcement ribs
The door curtain is equipped with multiple aluminum alloy reinforcement ribs, capable of withstanding wind up to 260pa (JG/T302-2022).
High and Standard configuration
High configuration: maximum opening speed of 1.2m/s; Closing speed 0.6m/s~0.8m/s; Standard configuration: maximum opening speed of 1.0m/s; Closing speed 0.6m/s~0.8m/s.
Safety photoelectric
Multiple security measures to ensure the safety of operators. Safety photoelectric: When the door curtain descends, it will sense the passage of personnel, and the curtain will fully open upwards. UPS power supply: In case of a power outage, the backup power supply can open and close the door electrically. Bottom safety sensor: When encountering obstacles during the descent of the door curtain, it will stop descending and fully open upwards.
Day and night combination door
The sectional door/rolling shutter door is installed in the same doorway; the sectional door/rolling shutter door is open during working hours and passes through with the interior high speed rolling shutter door switch; the sectional door/rolling shutter door is closed during non-working hours (wind-resistant, anti-theft), and opens with the interior high speed rolling shutter door.
Parts Design Highlights
01
The family style box cover forms a flat surface, with a simple appearance and small installation space.
02
Intelligent control system: fault code display, operation status display, fire linkage, interlock function, self safety protection.
Process Highlights
Fully automatic door curtain production equipment, cutting speed of 1m/s, size error not exceeding 1mm;
Fully automatic track forming machine production, with a production efficiency of 12m/minute.
Interior High Speed Doors can procide functions such as sealing, dust prevention, and efficient passage, and are widely used in building interiors in industries such as food, medicine, electronics, automotive, textile, logistics, rubber, and chemical.
Not less than 500mm above the door opening; The space on the side where the motor is installed shall not be less than 500mm, and the space on the side where the motor is not installed shall not be less than 200mm.
Sure, PVC door curtains are not absorbent and can be rinsed and wiped with clean water. If such a requirement exists, washable PVC quick doors can be chosen, and the rail and electrical control IP levels need to be customized for selection.
The Interior High Speed Door can be equipped with a soft bottom edge configuration. When the bottom edge is subjected to strong impact, it can be detached from the aisles on both sides. The door curtain can automatically reset to the track during the upward process to avoid collision damage.
