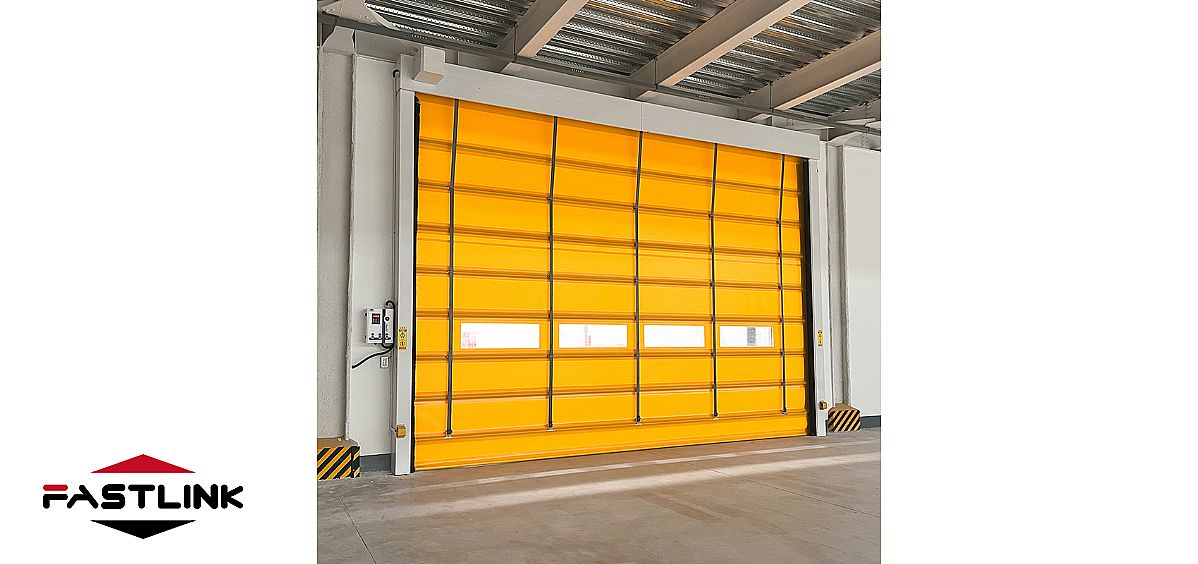

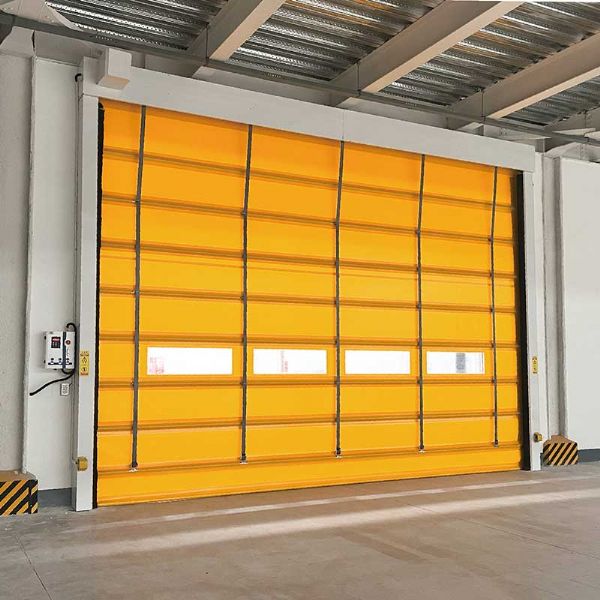

The High Speed Stacking Door has the properties of fast opening and closing, wind resistance, sealing, dustproof, mosquito-proof, safety, and intelligent control. A large number of users use it at logistics access points. The door curtain is produced using a fully automatic production line; sheet metal bending + built-in sealing brush track technology brings high-speed and quiet operation; multiple safety measures have no safety concerns in years of use; flexible opening methods can be selected by users in various usage environments. Intelligent control, such as access control systems and mobile phone remote controls, provides a convenient, safe, and reliable control experience.
The door curtain has multiple aluminum alloy reinforcement ribs and can withstand wind speed of 260Pa (JG/T302-2022)
Derailment reset
The bottom of the door curtain adopts a soft bottom edge design with derailment and reset function to prevent the bottom door curtain from being damaged or torn by a forklift and causing maintenance
Quick switch
Maximum opening speed 1.0m/s; closing speed 0.6m/s–0.8m/s
Multiple Security Measures
01
Safety photoelectricity:
When the door curtain is descending, it will sense the passage of a person and the door curtain will open upward completely;
02
UPS power supply:
In case of power failure, the door can be opened and closed electrically using backup power;
03
Safety airbag:
The door curtain will stop descending and open upward completely when it encounters obstacles during the descending process.
Parts Design Highlights
01
The family-style box cover forms a plane with a simple appearance and small installation space;
02
Intelligent control system: fault code display, operating status display, fire linkage, interlocking function, self-safety protection
Process Highlights
Fully automatic door curtain production equipment, cutting speed 1m/s, dimensional error ≯1mm;
Fully automatic track forming machine production, production efficiency 12m/minute
High Speed Stacking Doors can play the role of sealing, wind resistance, dust prevention, efficient passage, etc., and are widely used in food, medicine, electronics, automobile, textile, logistics, rubber, chemical and other industry buildings.
The space above the door opening is ≥1000mm; the space on the motor installation side is ≥500mm, and the space on the non-motor installation side is ≥300mm.
Yes, PVC door curtains are not absorbent materials and can be washed and wiped with clean water; if you need to wash the track, you need to choose stainless steel material.
