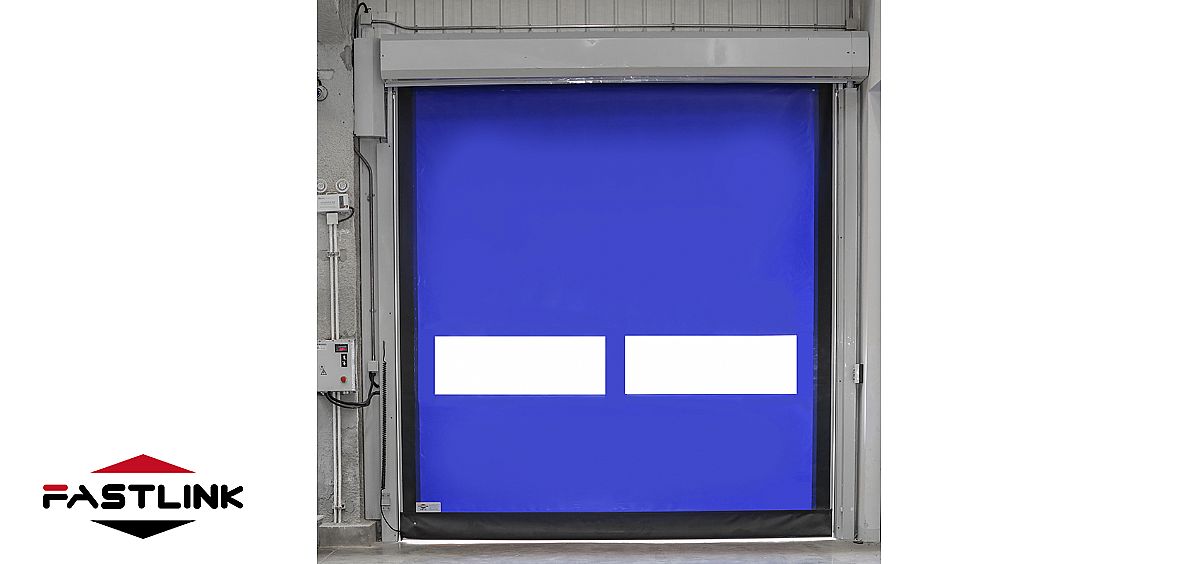

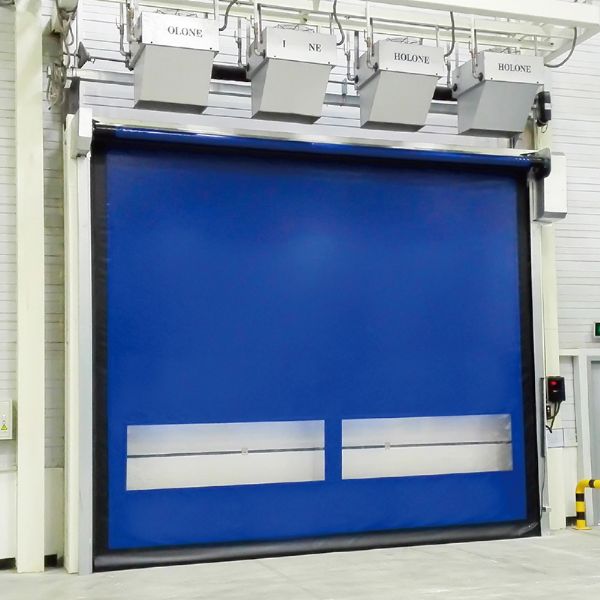

The Exterior High Speed Door, designed for the entire curtain fabric, has features such as quick opening and closing, sealing, dust prevention, mosquito and insect resistance, safety, and intelligent control, and has been widely used by users at logistics entrances. Using fully automated production lines to produce door curtains. Sheet metal bending + built-in sealing brush track technology brings a high-speed and quiet operation effect. Multiple security measures have been used for many years without any safety concerns. The flexible opening method allows users to choose from various usage environments. Intelligent control systems, such as access control and remote control on mobile devices, provide you with a convenient, reassuring, and reassuring control experience.
Soft bottom edge design: adopting a 360 ° no dead angle safe soft bottom edge design (wireless transmission of conductive rubber signals), which can avoid safety accidents, and the door curtain is self-repairing and maintenance free.
Wind resistance
Adopting a full curtain design, it has good collision resistance, good sealing, and strong wind resistance. The special precision design of door curtains and tracks (using polymer materials), with tension springs on both sides of the tracks, effectively buffering wind pressure/impact force, ensuring that the door curtains do not tear.
Seal
Special track sealing design to isolate airflow.
Multiple Security Measures
01
Safety photoelectric:
When the door curtain descends, it will sense the passage of personnel, and the door curtain will fully open upwards.
02
UPS power supply:
In case of power outage, the backup power supply can be used to electrically open and close the door.
03
Wireless secure conductive rubber:
When the door curtain encounters obstacles during the descent process, it will stop descending and fully open upwards.
Parts Design Highlights
01
Dual axis drive design: High frequency welded synchronous belts are used on both sides of the door curtain. During operation, the main drive shaft's gear plate drives the door curtain to quickly rise and fall, ensuring a tight fit with the wall and effective sealing.
02
Intelligent control system: fault code display, operation status display, fire linkage, interlock function, self safety protection.
Process Highlights
Fully automatic door curtain production equipment, cutting speed of 1m/s, size error not exceeding 1mm;
Balance system: The counterweight system effectively balances the weight of the door curtain, achieving dynamic balance and fast operation speed. The door curtain is closed by tightening it with a counterweight.
The maximum distance above the door opening is 500mm; The space on the side where the motor is installed should not exceed 500mm, and the space on the side where the motor is not installed should not exceed 200mm.
Exterior High Speed Doors can provide sealing, dust prevention, and efficient passage functions, and are widely used in building interiors in industries such as food, medicine, electronics, automotive, textile, logistics, rubber, and chemical.
Sure, PVC door curtains are not absorbent and can be rinsed and wiped with clean water. If such a requirement exists, washable PVC quick doors can be chosen, and the rail and electrical control IP levels need to be customized for selection.
The optional soft bottom edge configuration is available for the Fastlink Exterior High Speed Doors. When the bottom edge is strongly impacted, the bottom edge can be disengaged from the aisle on both sides, and the door curtain can be automatically reset to the track during the rising process to avoid crashing.
