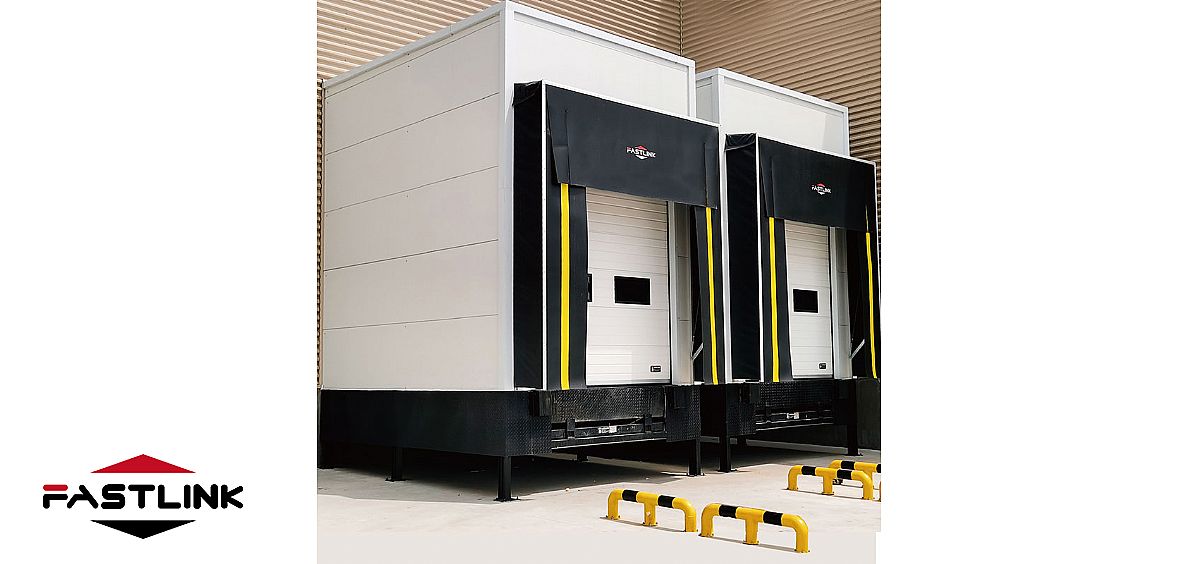

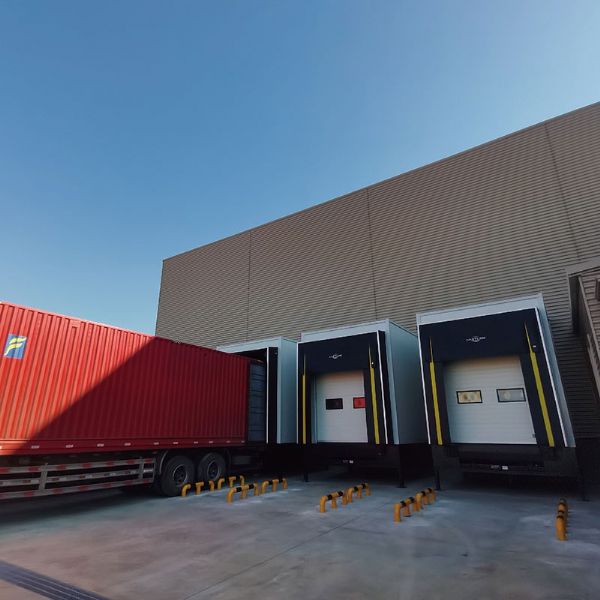

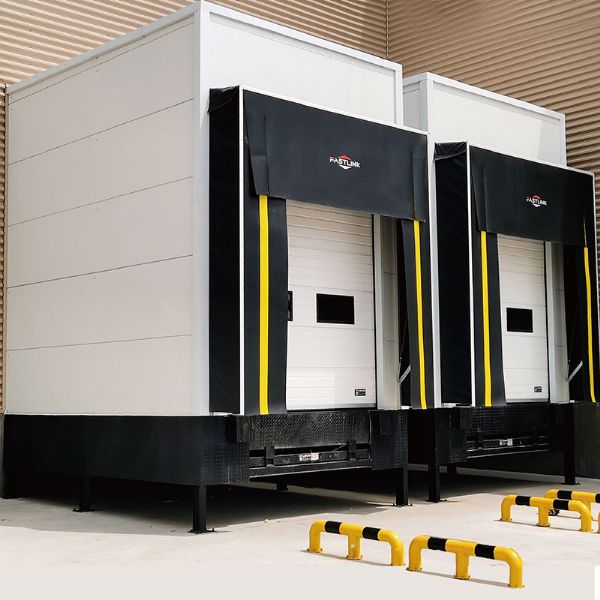

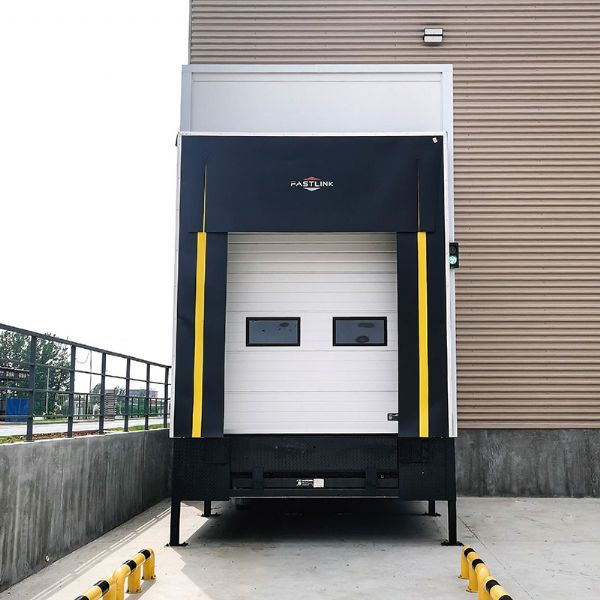

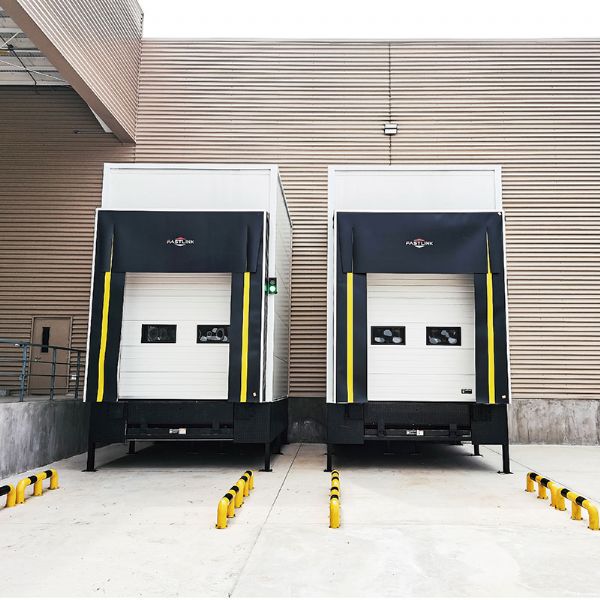

The Dock House is composed of a PU insulation board, a keel, a steel foundation pit, color plate folding accessories, etc. It is used to connect vehicles and buildings to form a loading and unloading transition area. It has the characteristics of heat preservation, wind resistance, anti-theft, and sealing. Installed on the outside of the loading and unloading area building, it saves energy and space. The space inside the building can be fully utilized, and the vehicle loading and unloading process can achieve better sealing of the hole. The dock house is also very suitable for renovation projects without foundation pits or small indoor loading and unloading areas. The dock house needs to have the scalability of installing door seals, door shelters, and sectional doors, and the loading and unloading room can be installed with a loading and unloading platform. The dock house can be provided separately, or two or three can be installed side by side to effectively save space. Typical application industries: logistics warehouses, cold chains, automobiles and parts, semiconductors, food production and pharmaceutical production, and other buildings.
Produced on a continuous fully automatic production line imported from Bayer Hennecke of Germany, with superb thermal insulation; Thermal insulation, high-density polyurethane, suitable for -35℃–60℃ (natural environment)
Wind resistance
Steel foundation pit base design, the built-in steel frame of insulation wall has excellent wind resistance, enough to withstand a force 12 typhoon, wind pressure resistance 700Pa
Stable structure
The bottom of the steel foundation pit is fixed to the ground with expansion bolts, and the rear is fixedly connected to the wall. The structure is stable and will not be damaged by parking and collision of vehicles.
Parts Design Highlights
01
The roof is sloped with a slope of 3% to the side, equipped with gutters and downspouts to facilitate drainage and cleaning.
Process Highlights
Anti-corrosion paint: Environmentally friendly paint is used, and fully automatic spraying equipment is used to spray anti-rust paint, primer and topcoat, with a paint layer thickness of 0.1mm
Dock houses are usually used in: 1) Platform loading and unloading ports without dock levelers. Hydraulic dock levelers can be installed in the unloading room to meet the requirements of loading and unloading carriages; 2) The indoor space of the platform is too small to install dock levelers. The dock levelers need to be installed outdoors. At the same time, they need to meet the sealing function during the loading and unloading process. Dock house can be designed to meet the use requirements.
The dock house will bear the impact of parking vehicles during use, so the structure needs to be very stable. The bottom of the steel foundation pit of the dock house is fixed to the ground with expansion bolts, and the rear is fixedly connected to the wall. The structure is stable and will not be damaged by parking and collision of vehicles.
