Fastlink Door offered products like Insulated Sectional Doors, Telescopic Dock Levelers, Inflatable Dock Shelters, and Signal Lights that help keep temperatures steady from the cold storage room to the loading area by sealing well and working efficiently. This solidifies a robust physical foundation for Raindew's commitment to delivering ultimate freshness "from the branch to the store."
Intelligent Storage, Guardian of Fresh Fruit

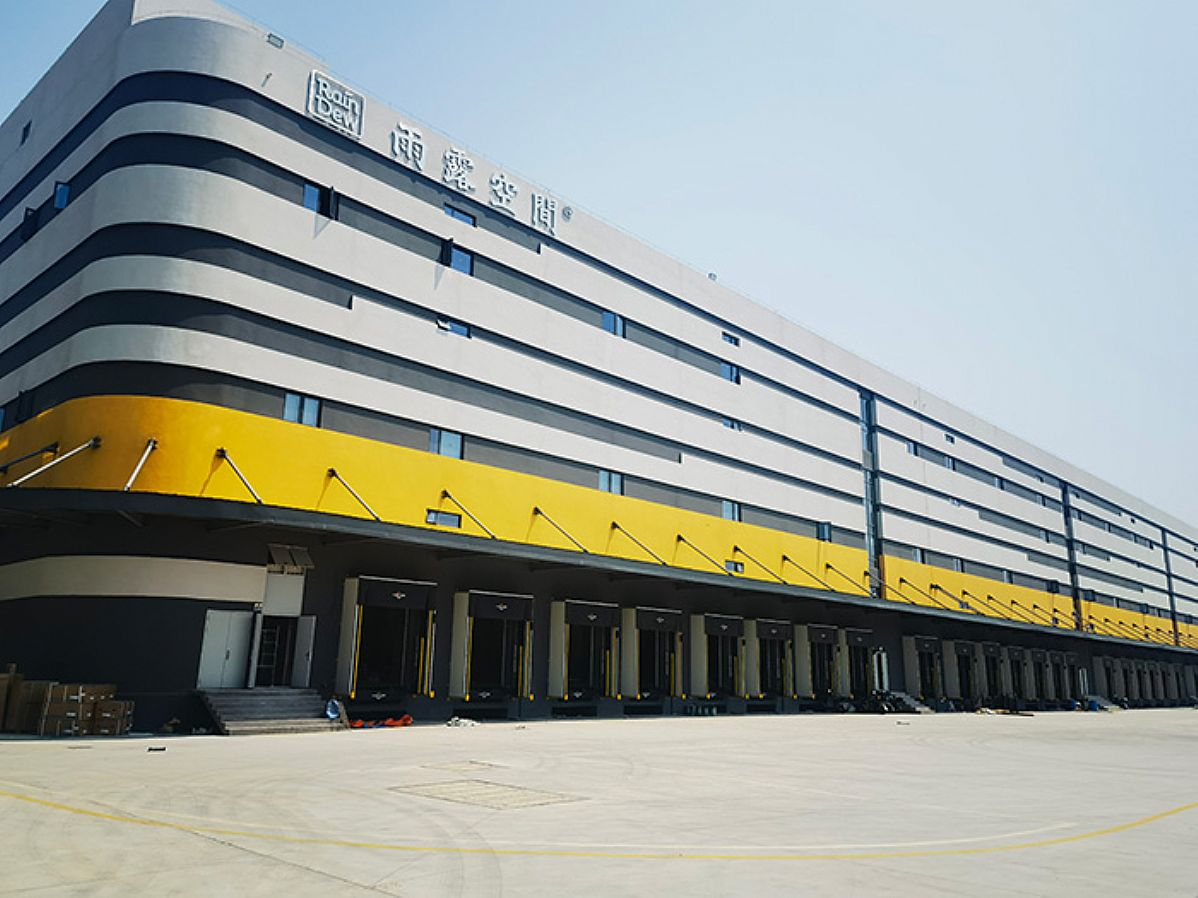

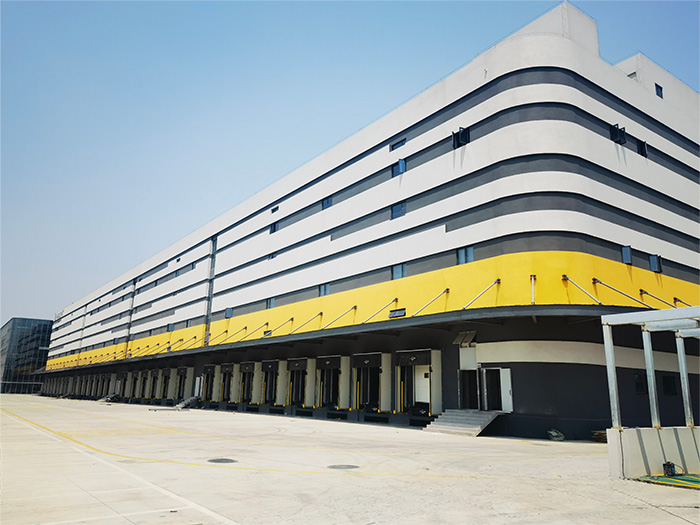

The core of this project is the construction of an advanced, independent storage facility. It aims to create a safe, efficient, and energy-saving storage environment for high-end fresh fruits through leading cold chain technology and intelligent equipment. The precise temperature control system minimizes fruit spoilage to the greatest extent, ensuring that every piece of fruit reaching the consumer is in optimal condition. The intelligent cold chain is not only the core support of its business model but also constitutes a powerful competitive advantage, guaranteeing quality control across the entire chain. In today's world, where the fresh produce supply chain is increasingly vital, this project undoubtedly holds significant industry-wide exemplary value.
Intelligent Temperature Control, Quality Assurance
In the construction of high-standard storage warehouses, a key challenge is effectively preventing contamination and precisely controlling temperature during the flow of materials and personnel. The complete intelligent access solution provided by Fastlink plays a vital role in safeguarding the quality of Raindew's fresh fruits.
- Insulated Sectional Door: Blocking Convection, Locking in Freshness
Fastlink's Insulated Sectional Door achieves the highest level of overall sealing through multiple seal designs at the bottom, sides, top, and between panels. The 65mm thick door panels, filled with high-density polyurethane via high-pressure foaming and combined with a thermal break structure design, effectively block heat transfer between inside and outside, serving as a critical supplement to the cold storage wall's insulation and sealing. Its excellent thermal insulation performance maintains a stable temperature in the anteroom for extended periods, meeting high-frequency loading and unloading demands.

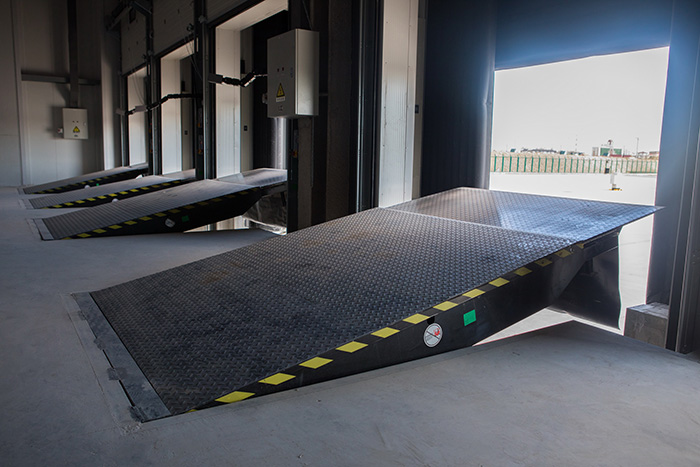

- Telescopic Dock Leveler & Soft Wall: Ensuring Efficient Logistics
Sealing is the core design principle for cold storage unloading bays. The Telescopic Dock Leveler, installed inside the sectional door, features a 1000mm/1200mm lip plate suitable for bridging with various truck types. When the door is closed, the leveler can lower into the pit base, completely isolating indoor and outdoor air exchange and achieving a fully sealed design for the unloading bay, significantly reducing energy consumption. The unique pit design allows refrigerated trucks to dock first, with the door opening from inside, greatly minimizing the impact on the cargo box temperature. Combined with a special soft wall design, it further enhances bottom sealing, effectively preventing cold air leakage.

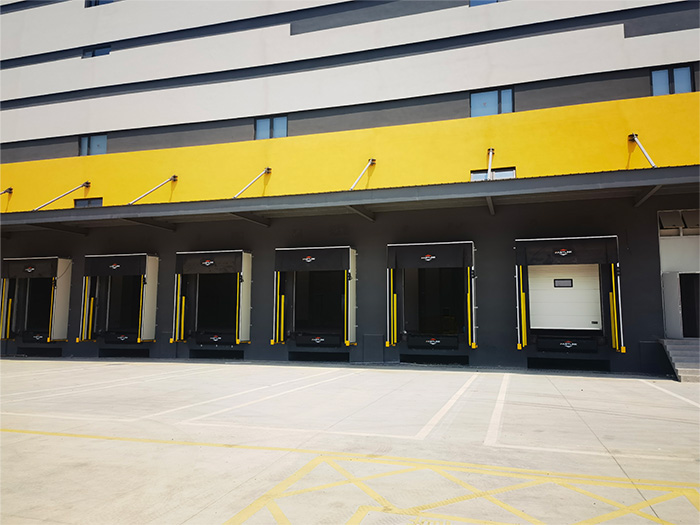

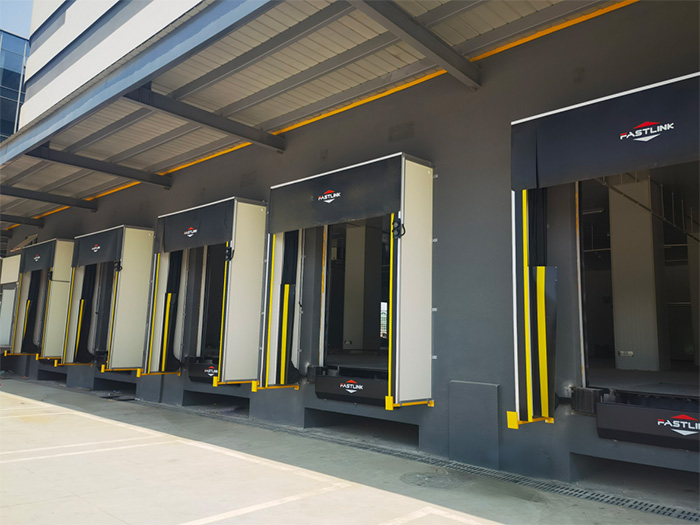

- Inflatable Dock Shelter: Bidding Farewell to Cold Air Leaks
Fastlink's Inflatable Dock Shelter effectively solves the sealing challenges posed by different truck sizes and reduces the impact of adverse weather on loading/unloading operations, making it an ideal solution for the cold chain logistics industry. The 1000mm/1200mm lip plate also ensures normal loading/unloading procedures. The inflatable airbags on the top and sides firmly envelop the rear of the truck trailer upon inflation. The side airbags feature an L-shaped structure, ensuring a tight seal even between the bottom of the side airbags and the wall. Even under harsh winter conditions, it reduces the impact on operators, improves work efficiency, and effectively controls temperature fluctuations within the warehouse.
- Signal Lights & Flex Neck Dock Lights: Clear Guidance, Safety Assurance
The Flex Neck Dock Lights provide comprehensive safety lighting for the loading/unloading process. Its flexible arm allows 360-degree rotation, and the brightness is adjustable, offering convenience and durability. The prominent Signal Lights provide clear visual indicators for core operational workflows, serving as a key element in ensuring the safe operation of personnel, vehicles, and equipment.
Fastlink delivers more than individual industrial door products; it is a comprehensive sealing and temperature control barrier that forms critical nodes within Raindew's intelligent cold chain. From the Insulated Sectional Door that guards the storage facility's constant temperature, to the Telescopic Dock Leveler and Inflatable Dock Shelter that enable efficient and damage-free loading/unloading, Fastlink's solutions extend "intelligence" from its digital systems to every physical interface, ensuring an unbroken chain throughout storage and transportation. This serves as a solid foundation for the pursuit of quality in Raindew and sets a high-standard benchmark for infrastructure development in the fresh food cold chain industry.
