The Fastlink Steel Wind-Resistant Rolling Shutter Door precisely addresses these issues. Built with robust materials and a professional structure, it offers strong adaptability and comprehensive protection, making it the preferred solution for various building passageways.
What is a Steel Wind-Resistant Rolling Shutter Door?
A steel wind-resistant rolling shutter door consists of multiple articulated slats connected in series, which rotate around an overhead roller within fixed tracks to open and close. Specifically designed for building passageways, it meets functional requirements such as theft prevention, wind resistance, dust insulation, and thermal isolation.

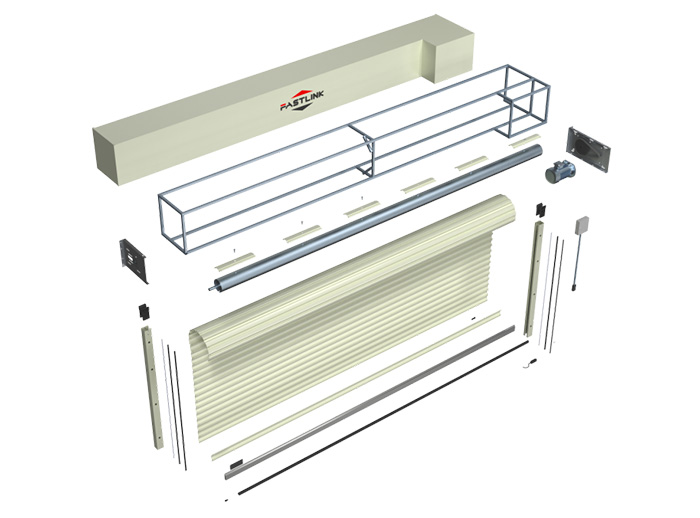

Components of the Fastlink Steel Wind-Resistant Rolling Shutter Door
1. Door Curtain
The slats are made from single-layer 1.0mm color-coated steel plates, with materials strictly complying with the national standard GB/T12754 to ensure structural strength and durability. The standard slat height is 115mm. For large-span applications exceeding 5m in width, the slats feature an integrated wind-resistant hook design, significantly enhancing the curtain's overall wind load capacity and ensuring stable operation in harsh weather or strong airflow conditions.

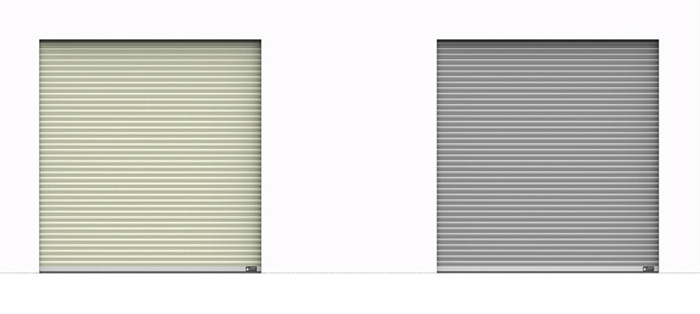

Available in standard color codes such as White Gray (RAL9002) and Silver Gray (RAL9006), with support for flexible customization. The bottom rail is made of integrally formed aluminum alloy, with built-in EPDM sealing strips to provide effective dust and noise insulation, further improving the door’s sealing performance and user experience.

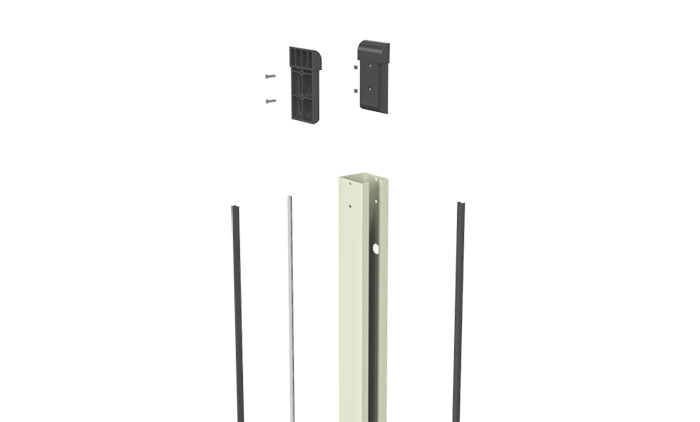

2. Tracks
The tracks are made of high-quality galvanized steel plates, formed through one-time roller pressing, and finished with baked paint for excellent corrosion and wear resistance. With a thickness of 1.5mm, the tracks effectively enhance the door’s overall wind pressure resistance, making them suitable for various industrial scenarios. Built-in soundproof sealing strips reduce friction between the curtain and tracks, ensuring smooth and quiet operation.
3. Drive System
Equipped with a high-power rolling door motor for strong and stable operation, along with a manual emergency chain release device to ensure the door can be opened or closed during power outages or other emergencies, maintaining uninterrupted logistics access.
Flexible opening methods cater to different usage scenarios:

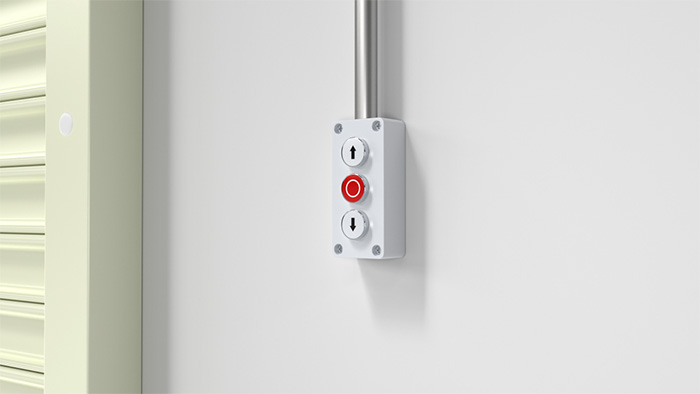

- Electric mode includes a three-button switch with a lock, supporting precise control for lifting, lowering, and stopping to prevent misuse.
- Manual mode can be activated during power outages by pulling the emergency backup chain to operate the door.
- Remote control mode comes standard with two remote transmitters for convenient and efficient operation, suitable for multi-person collaboration or long-distance control.
4. Safety Devices
Multiple safety devices are provided, covering standard basic protections and optional upgrade features, ensuring comprehensive safety:
- Limit Device (Standard): Pre-sets the upper and lower limits of the door. When the shutter reaches these points, the limiter automatically cuts off the motor power to achieve precise stopping and prevent over-travel damage.
- Chain Anti-Drop Device (Standard): In case of accidental chain breakage, the locking mechanism instantly engages the sprocket, immediately stopping the curtain and eliminating fall hazards.
- Self-Locking Device (Optional): If abnormal roller speed is detected, the internal locking mechanism automatically activates to secure the roller and prevent rapid downward movement of the curtain.
- Safety Airbag Sensor (Optional): Installed at the bottom of the curtain, the sensor immediately stops the motor upon contact with obstacles, effectively protecting personnel, goods, and equipment.
Application Scenarios

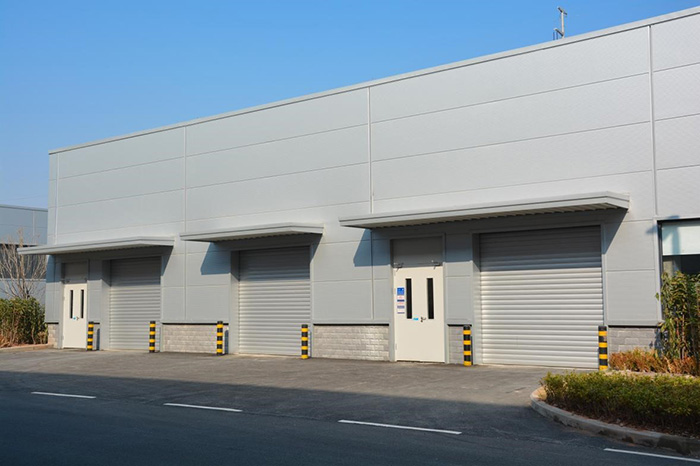

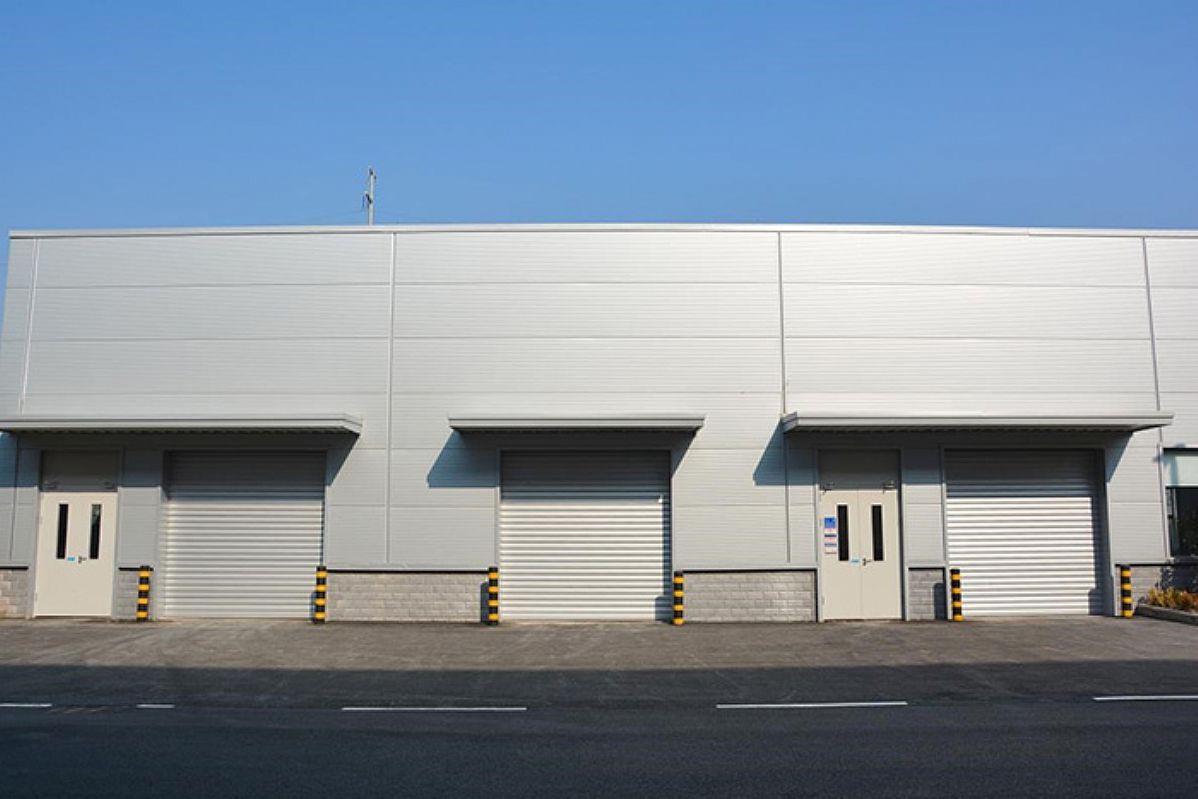

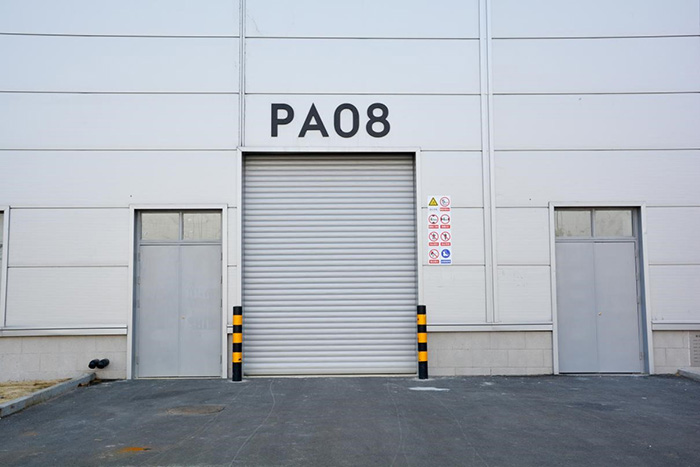

- Factory Workshops & Production Plants: Often affected by strong winds and sandstorms, these environments require reliable protection. The Fastlink door, with its steel plate thickness of 1.0mm or more and wind-resistant hook design, withstands strong wind impacts and prevents deformation. Its integrated locking structure also enhances theft resistance.

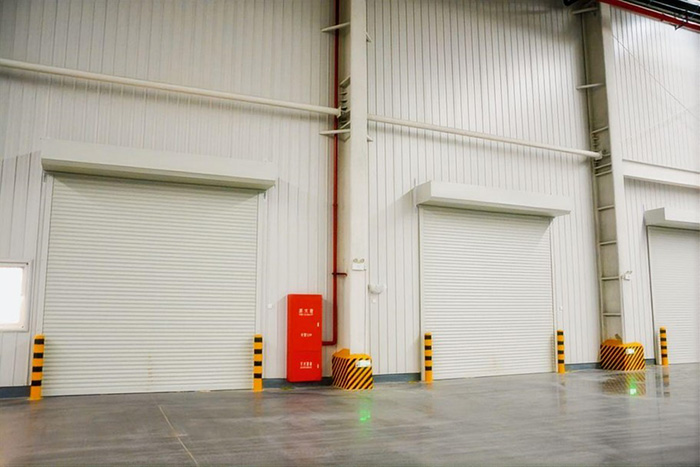

- Logistics Parks & Warehouses: Loading and unloading areas are typically open designs. The sturdy structure of the steel wind-resistant rolling shutter prevents door sway due to wind, ensuring smooth cargo handling. The sealing strips block rainwater and dust, protecting stored goods from moisture. Additionally, the door helps prevent nighttime theft, providing dual security for logistics operations.
- Special Scenarios: Ports and chemical parks demand higher weather resistance and safety. In port areas with corrosive sea breezes, the door’s coating provides rust and corrosion resistance. In chemical parks, where impact resistance is critical, the high-strength material can withstand external collisions.
The Fastlink Steel Wind-Resistant Rolling Shutter Door, with its core windproof performance, combines adaptability, reliability, and cost-effectiveness. It not only reinforces the safety of building entrances and exits but also enhances operational efficiency, making it a practical and value-for-money protective solution.
