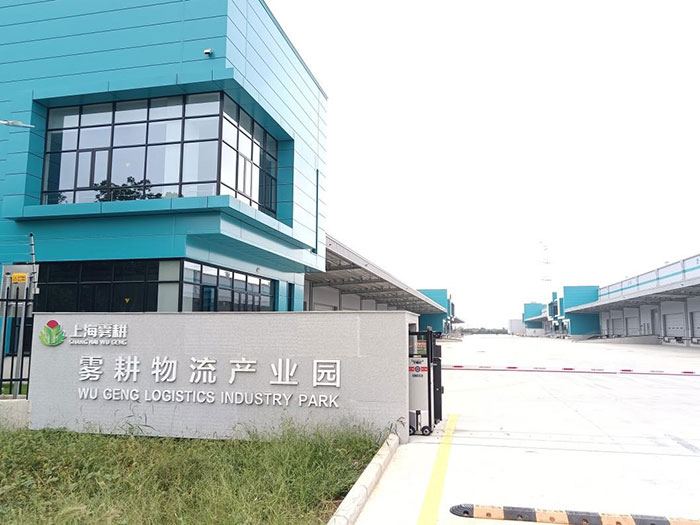

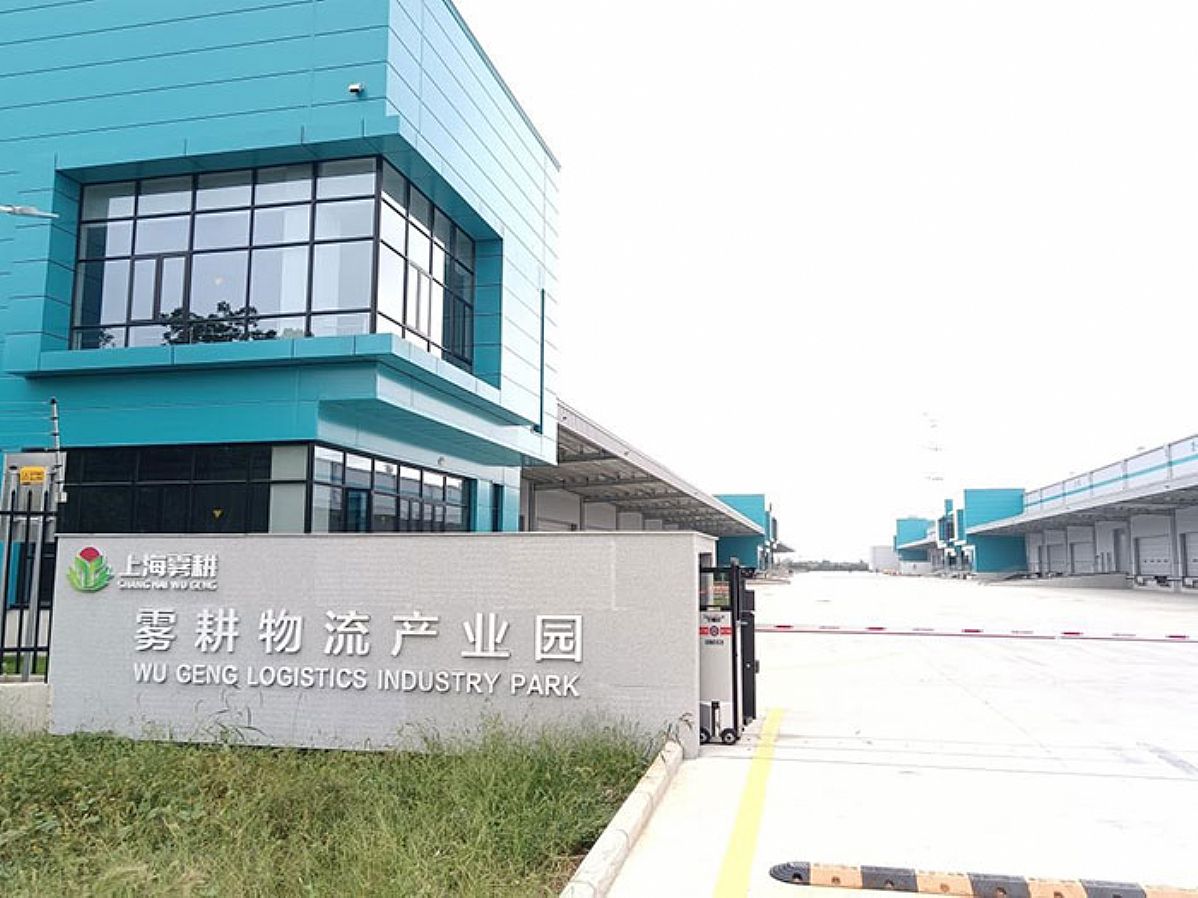

Case Study: The Efficiency Code of Anhui Wu Geng Logistics Industrial Park

Logistics Hub, Intelligent Support

The core of this project involved supplying intelligent access equipment for the construction of three dry warehouses and one cold storage facility, with a total construction area of approximately 60,000 square meters. This planning aims to achieve operational efficiency upgrades and quality assurance through scientific layout. From preserving freshness in the cold chain to turnover in dry storage, and from safety protection to energy saving and consumption reduction, the solutions align perfectly with the project's positioning as a "comprehensive agricultural product logistics hub."

In high-standard warehouse construction, a core challenge is preventing the loss of temperature and humidity, avoiding dust contamination and goods dampness/mildew, and ensuring product freshness and stable quality during the movement of goods and personnel. The complete intelligent access solution provided by Fastlink has become a crucial cornerstone for the efficient operation of the Wu Geng Logistics Park.

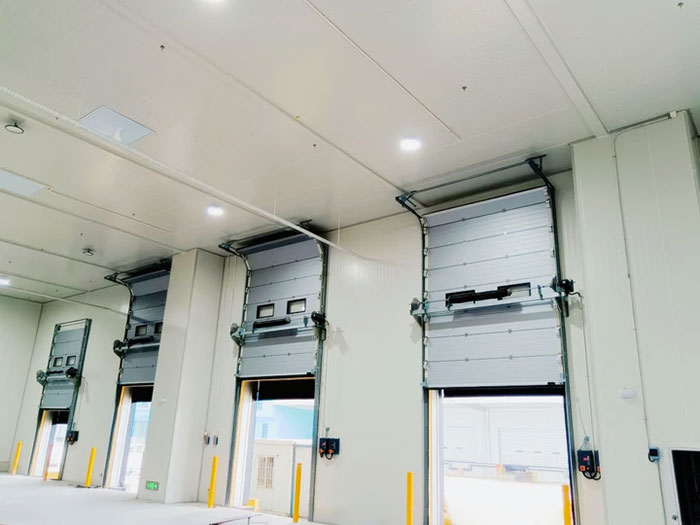

Insulated Sectional Door for Cold Storage: Break the Cold Bridge, Save Energy, Precise Temperature Control



The Insulated Sectional Door for Cold Storage features a 65mm thickened door panel, manufactured standardly on a continuous, fully automated production line. Its core is filled with polyurethane foam formed by high-pressure injection molding, with a precise density control of 48±2 kg/m³, ensuring uniform and stable thermal insulation performance. High-seal gaskets at the panel joints effectively block the transfer of cold and hot air. Simultaneously, the thermal break door panel structure design minimizes cold loss, aiding the cold storage in achieving highly efficient and energy-saving operation. The vision panels use double-paned acrylic glass, which not only enhances overall sealing and insulation but also ensures clear, transparent visibility. The inner side is equipped with a self-regulating heating film (limiting temperature to within 35°C), effectively preventing condensation and fogging on the windows in low-temperature environments. This provides a clear view during operations and ensures a quiet, noise-free user experience, balancing practicality and comfort.

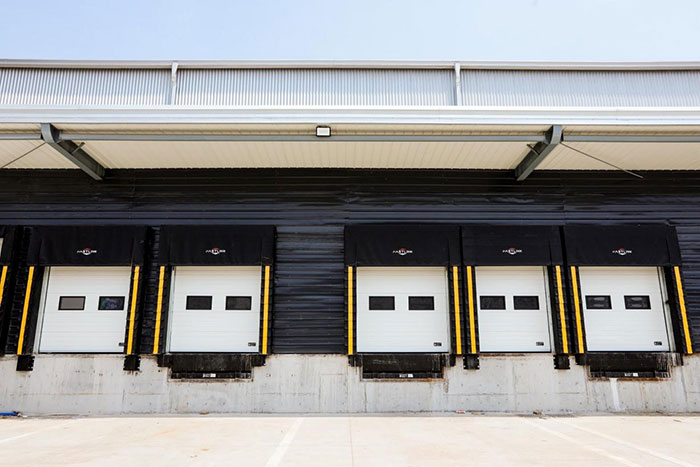

Sponge Dock Seal: Sealing, Durable, Wide Applicability



The curtain of Fastlink's Sponge Dock Seal is made of polyester monofilament elastic strength fabric with a wear-resistant PVC coating on the surface. It is filled with high-resilience sponge, offering a maximum compression ratio of 70%, and is available in 200mm and 250mm thicknesses to accommodate different vehicle types. The product features a unique pressure-reduction design, which effectively reduces direct friction between the seal and the truck body through elastic buffering, extending the seal's service life. It is also equipped with wear-resistant bellows panels distributed on the sides and top key friction areas, forming abrasion-resistant protection to further enhance durability. The seal body is fitted with highly reflective yellow guide strips, which clearly mark the docking area in low-light loading/unloading scenarios, effectively improving operational safety during nighttime or dim conditions.

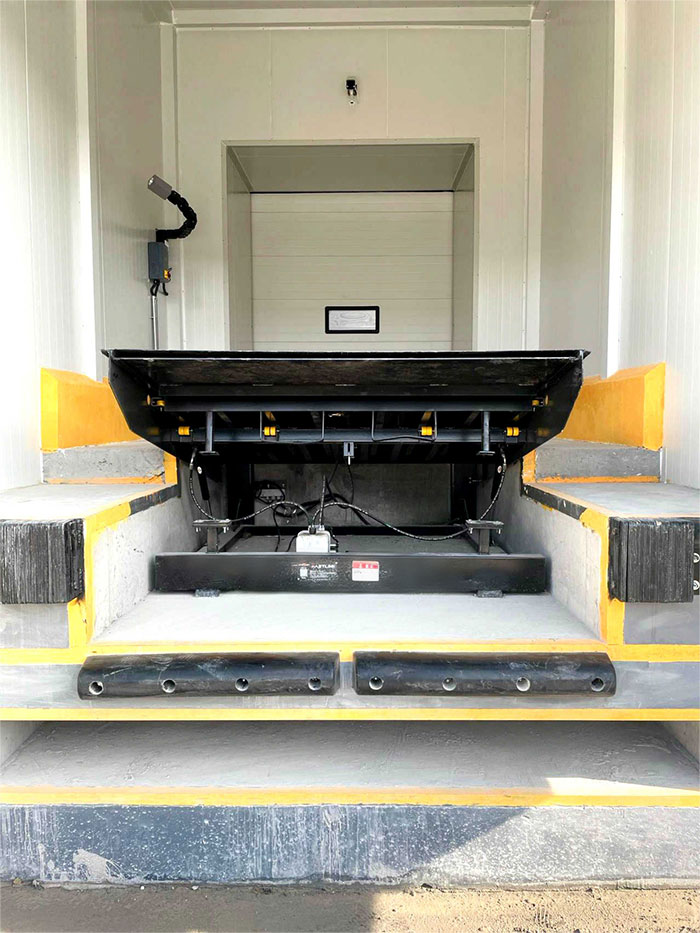

Telescopic Dock Leveler: Stable Load-bearing, Efficient, Sealing, Energy-Saving



Sealing is a key focus in cold storage dock design. The Telescopic Dock Leveler is installed inside the cold storage sectional door. After the door closes, the platform descends directly to the pit bottom, cutting off air convection between the interior and exterior, thus achieving a fully sealed dock design. It can be installed inside the cold storage dock door, and its 1000mm/1200mm long lip plate ensures normal loading and unloading operations. After the door is closed, it descends to the pit bottom, completely isolating indoor and outdoor air convection, realizing a fully sealed dock design and significantly reducing energy consumption.

Aluminum Single Panel Sectional Door: Strong, Wind-Resistant, Sturdy Structure



Fastlink's Aluminum Single Panel Sectional Door utilizes a one-piece roll-forming process for the aluminum alloy frame and aluminum-magnesium alloy door panel, eliminating traditional rivet designs. This ensures a clean, aesthetically pleasing appearance while significantly enhancing structural strength. The wind-resistant ribs on the bottom frame further increase the door panel's rigidity, making it resistant to deformation and offering excellent wind resistance. The product boasts advantages such as fast lifting speed, low failure rate, long service life, and stable, quiet operation. With a cost lower than insulated sectional doors and performance superior to roller shutters, it is a cost-effective alternative to both and the only suitable solution for large-span openings.

Conclusion



From preserving freshness in the cold chain to boosting efficiency, from safety protection to long-term operation, the customized solution built by Fastlink Door with its product series provides not just supporting access facilities for the park's construction, but the core driving force enabling its positioning as a "regional logistics benchmark." This deep cooperation model of "Scenario Adaptation + Technological Innovation" also provides a replicable template for the construction of modern logistics parks.
